SI8710BD-B-IS

Active

Skyworks Solutions Inc.

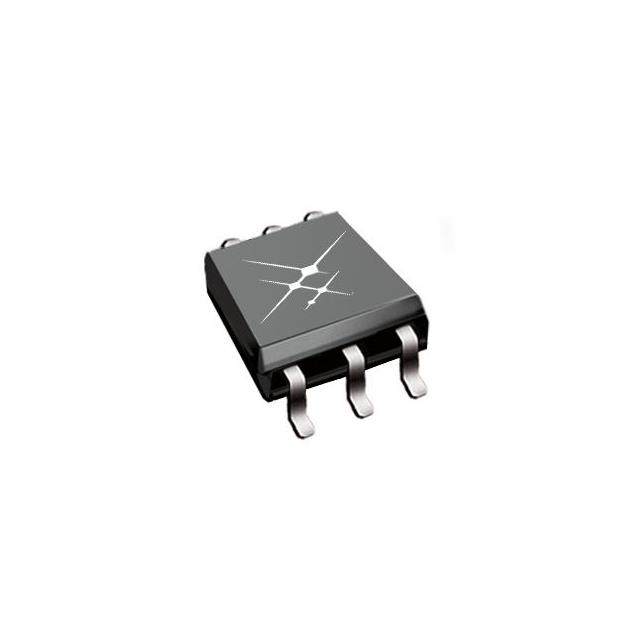

DGTL ISO 5000VRMS 1CH GP 6DIP GW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SI8710BD-B-IS

Active

Skyworks Solutions Inc.

DGTL ISO 5000VRMS 1CH GP 6DIP GW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SI8710BD-B-IS

Channel Type	Unidirectional
Common Mode Transient Immunity (Min) [Min]	35 kV/µs
Data Rate	15 Mbps
Inputs - Side 1/Side 2 [custom]	0
Inputs - Side 1/Side 2 [custom]	1
Isolated Power	False
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-SOIC
Package / Case [x]	0.295 in
Package / Case [y]	7.5 mm
Propagation Delay tpLH / tpHL (Max)	60 ns
Pulse Width Distortion (Max) [Max]	20 ns
Rise / Fall Time (Typ) [custom]	15 ns
Rise / Fall Time (Typ) [custom]	5 ns
Supplier Device Package	6-SDIP Gull Wing
Technology	Capacitive Coupling
Type	General Purpose
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	3 V

SI8710 Series

Part	Inputs - Side 1/Side 2 [custom]	Package / Case	Package / Case [y]	Package / Case [x]	Supplier Device Package	Technology	Pulse Width Distortion (Max) [Max]	Number of Channels	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Voltage - Isolation	Propagation Delay tpLH / tpHL (Max)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Channel Type	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	Common Mode Transient Immunity (Min) [Min]	Type
Skyworks Solutions Inc. SI8710BC-B-IS	1	8-SOIC	3.9 mm	0.154 in	8-SOIC	Capacitive Coupling	20 ns	1	30 VDC	3 V	Surface Mount	3750 Vrms	60 ns	15 ns	5 ns	Unidirectional	125 °C	-40 °C	15 Mbps	35 kV/µs	General Purpose
Skyworks Solutions Inc. SI8710BC-B-ISR	1	8-SOIC	3.9 mm	0.154 in	8-SOIC	Capacitive Coupling	20 ns	1	30 VDC	3 V	Surface Mount	3750 Vrms	60 ns	15 ns	5 ns	Unidirectional	125 °C	-40 °C	15 Mbps	35 kV/µs	General Purpose
Skyworks Solutions Inc. SI8710AD-B-IS	1	6-SOIC	7.5 mm	0.295 in	6-SDIP Gull Wing	Capacitive Coupling	20 ns	1	30 VDC	3 V	Surface Mount		60 ns	15 ns	5 ns	Unidirectional	125 °C	-40 °C	15 Mbps	20 kV/µs	General Purpose
Skyworks Solutions Inc. SI8710BC-B-IP	1				8-DIP Gull Wing	Capacitive Coupling	20 ns	1	30 VDC	3 V	Surface Mount	3750 Vrms	60 ns	15 ns	5 ns	Unidirectional	125 °C	-40 °C	15 Mbps	35 kV/µs	General Purpose
Skyworks Solutions Inc. SI8710AC-B-IS	1	8-SOIC	3.9 mm	0.154 in	8-SOIC	Capacitive Coupling	20 ns	1	30 VDC	3 V	Surface Mount	3750 Vrms	60 ns	15 ns	5 ns	Unidirectional	125 °C	-40 °C	15 Mbps	20 kV/µs	General Purpose
Skyworks Solutions Inc. SI8710BD-B-IS	1	6-SOIC	7.5 mm	0.295 in	6-SDIP Gull Wing	Capacitive Coupling	20 ns	1	30 VDC	3 V	Surface Mount		60 ns	15 ns	5 ns	Unidirectional	125 °C	-40 °C	15 Mbps	35 kV/µs	General Purpose
Skyworks Solutions Inc. SI8710AD-B-ISR	1	6-SOIC	7.5 mm	0.295 in	6-SDIP Gull Wing	Capacitive Coupling	20 ns	1	30 VDC	3 V	Surface Mount		60 ns	15 ns	5 ns	Unidirectional	125 °C	-40 °C	15 Mbps	20 kV/µs	General Purpose
Skyworks Solutions Inc. SI8710CC-B-IS	1	8-SOIC	3.9 mm	0.154 in	8-SOIC	Capacitive Coupling	20 ns	1	30 VDC	3 V	Surface Mount	3750 Vrms	60 ns	15 ns	5 ns	Unidirectional	125 °C	-40 °C	1 Mbps	20 kV/µs	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.22
		10	$ 1.99
		25	$ 1.89
		100	$ 1.63
		300	$ 1.55
		500	$ 1.48

Description

General part information

SI8710 Series

General Purpose Digital Isolator 5000Vrms 1 Channel 15Mbps 35kV/µs CMTI 6-SOIC (0.295", 7.50mm Width)
