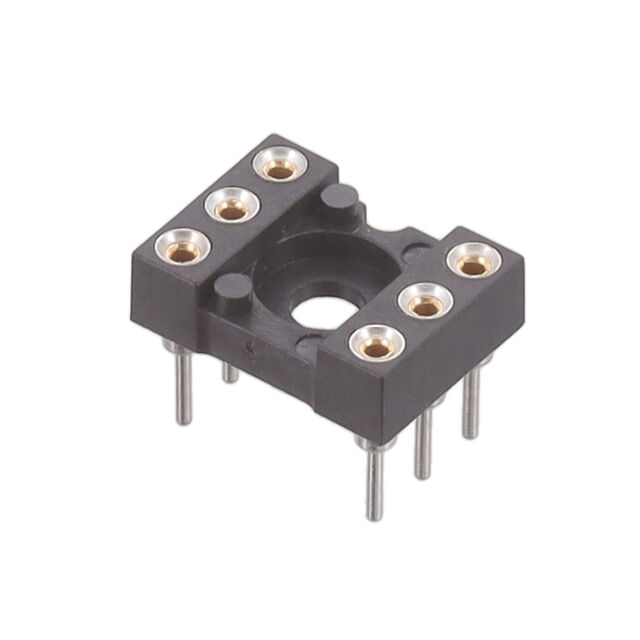

210-43-306-41-001000

Active

Mill-Max Manufacturing Corp.

CONN IC SKT DBL

Deep-Dive with AI

Search across all available documentation for this part.

210-43-306-41-001000

Active

Mill-Max Manufacturing Corp.

CONN IC SKT DBL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	210-43-306-41-001000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Contact Resistance	10 mOhm
Current Rating (Amps)	3 A
Features	Closed Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid) [custom]	2
Number of Positions or Pins (Grid) [custom]	6
Number of Positions or Pins (Grid) [custom]	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	0.3 "
Type	7.62 mm
Type	DIP

210-43 Series

Part	Contact Material - Mating	Number of Positions or Pins (Grid)	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Pitch - Post	Pitch - Post	Features	Contact Resistance	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Post	Material Flammability Rating	Termination Post Length	Termination Post Length	Pitch - Mating	Pitch - Mating	Type	Type	Type	Mounting Type	Contact Finish - Post	Housing Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 210-43-320-41-001000	Beryllium Copper	20	-55 °C	125 °C	3 A	2.54 mm	0.1 in	Closed Frame	10 mOhm	Solder	200 µin	5.08 µm	Brass Alloy	UL94 V-0	3.18 mm	0.125 in	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 210-43-964-41-001000	Beryllium Copper	64	-55 °C	125 °C	3 A	2.54 mm	0.1 in	Closed Frame	10 mOhm	Solder	200 µin	5.08 µm	Brass Alloy	UL94 V-0	3.18 mm	0.125 in	0.1 in	2.54 mm	0.9 in	22.86 mm	DIP	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 210-43-310-41-001000	Beryllium Copper		-55 °C	125 °C	3 A	2.54 mm	0.1 in	Closed Frame	10 mOhm	Solder	200 µin	5.08 µm	Brass Alloy	UL94 V-0	3.18 mm	0.125 in	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	30 Áin	0.76 Ám	2 x 5	10
Mill-Max Manufacturing Corp. 210-43-314-41-001000	Beryllium Copper	14	-55 °C	125 °C	3 A	2.54 mm	0.1 in	Closed Frame		Solder	200 µin	5.08 µm	Brass Alloy		3.18 mm	0.125 in	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 210-43-422-41-001000	Beryllium Copper	22	-55 °C	125 °C	3 A	2.54 mm	0.1 in	Closed Frame	10 mOhm	Solder	200 µin	5.08 µm	Brass Alloy	UL94 V-0	3.18 mm	0.125 in	0.1 in	2.54 mm	0.4 in	10.16 mm	DIP	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 210-43-424-41-001000	Beryllium Copper	24	-55 °C	125 °C	3 A	2.54 mm	0.1 in	Closed Frame	10 mOhm	Solder	200 µin	5.08 µm	Brass Alloy	UL94 V-0	3.18 mm	0.125 in	0.1 in	2.54 mm	0.4 in	10.16 mm	DIP	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 210-43-632-41-001000	Beryllium Copper		-55 °C	125 °C	3 A	2.54 mm	0.1 in	Closed Frame		Solder	200 µin	5.08 µm	Brass Alloy		3.18 mm	0.125 in	0.1 in	2.54 mm	0.6 in	15.24 mm	DIP	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	30 Áin	0.76 Ám	2 x 16		32
Mill-Max Manufacturing Corp. 210-43-322-41-001000	Beryllium Copper	22	-55 °C	125 °C	3 A	2.54 mm	0.1 in	Closed Frame	10 mOhm	Solder	200 µin	5.08 µm	Brass Alloy	UL94 V-0	3.18 mm	0.125 in	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 210-43-306-41-001000	Beryllium Copper		-55 °C	125 °C	3 A	2.54 mm	0.1 in	Closed Frame	10 mOhm	Solder	200 µin	5.08 µm	Brass Alloy	UL94 V-0	3.18 mm	0.125 in	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	30 Áin	0.76 Ám				2	6	3
Mill-Max Manufacturing Corp. 210-43-308-41-001000	Beryllium Copper	8	-55 °C	125 °C	3 A	2.54 mm	0.1 in	Closed Frame		Solder	200 µin	5.08 µm	Brass Alloy		3.18 mm	0.125 in	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 14.72
		10	$ 13.05
		25	$ 12.55
		67	$ 12.05
		134	$ 11.38
		268	$ 10.37
		536	$ 9.70
		1005	$ 8.90

Description

General part information

210-43 Series

6 (2 x 3) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole

Documents

Technical documentation and resources

No documents available
