EVQ7200-L-00B

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MPQ7200-AEC1

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MPQ7200-AEC1

Technical Specifications

Parameters and characteristics for this part

Specification	EVQ7200-L-00B

Current - Output / Channel [custom]	1.2 A
Features	Dimmable
Outputs and Type	1 Non-Isolated Output
Supplied Contents	Board(s)
Utilized IC / Part	MPQ7200-AEC1
Voltage - Input [Max]	20 V
Voltage - Input [Min]	6 V
Voltage - Output [Max]	15 V
Voltage - Output [Min]	3 V

Part	Mounting Type	Topology	Frequency	Voltage - Supply (Max) [Max]	Package / Case	Grade	Dimming	Qualification	Number of Outputs	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output / Channel	Supplier Device Package	Voltage - Supply (Min) [Min]	Applications	Current - Output / Channel [custom]	Outputs and Type	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Supplied Contents	Features	Voltage - Output [Max]	Voltage - Output [Min]
MONOLITHIC POWER SYSTEMS (MPS) MPQ7200GLE-AEC1-Z	Surface Mount Wettable Flank	Step-Down (Buck) Step-Up (Boost)	2.3 MHz	42 V	19-PowerVFQFN	Automotive	PWM	AEC-Q100	1	DC DC Regulator	150 °C	-40 °C	3 A	19-QFN (3x4)	6 V	General Purpose
MONOLITHIC POWER SYSTEMS (MPS) EVQ7200A-L-00B																	1.2 A	1 Non-Isolated Output	20 V	6 V	MPQ7200A-AEC1	Board(s)	Dimmable
MONOLITHIC POWER SYSTEMS (MPS) EVQ7200-L-00B																	1.2 A	1 Non-Isolated Output	20 V	6 V	MPQ7200-AEC1	Board(s)	Dimmable	15 V	3 V
MONOLITHIC POWER SYSTEMS (MPS) MPQ7200GLE-AEC1-P	Surface Mount Wettable Flank	Step-Down (Buck) Step-Up (Boost)	2.3 MHz	42 V	19-PowerVFQFN	Automotive	PWM	AEC-Q100	1	DC DC Regulator	150 °C	-40 °C	3 A	19-QFN (3x4)	6 V	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 50.00

General part information

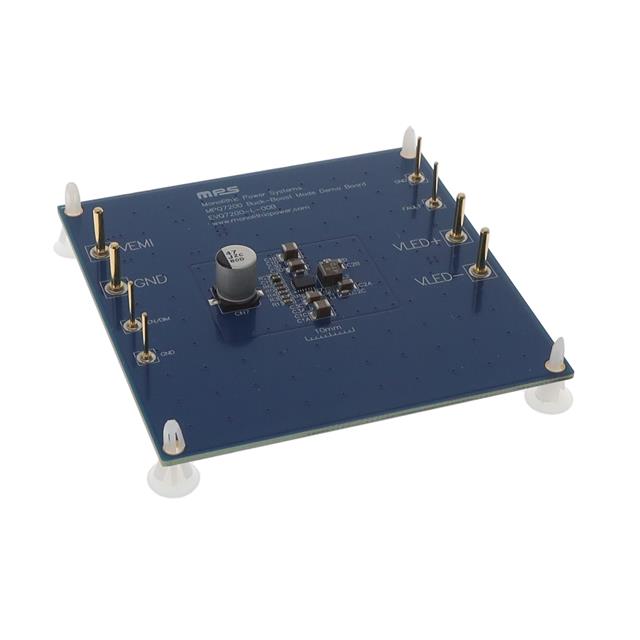

MPQ7200-AEC1 - 1 Non-Isolated Output Dimmable LED Driver Evaluation Board
