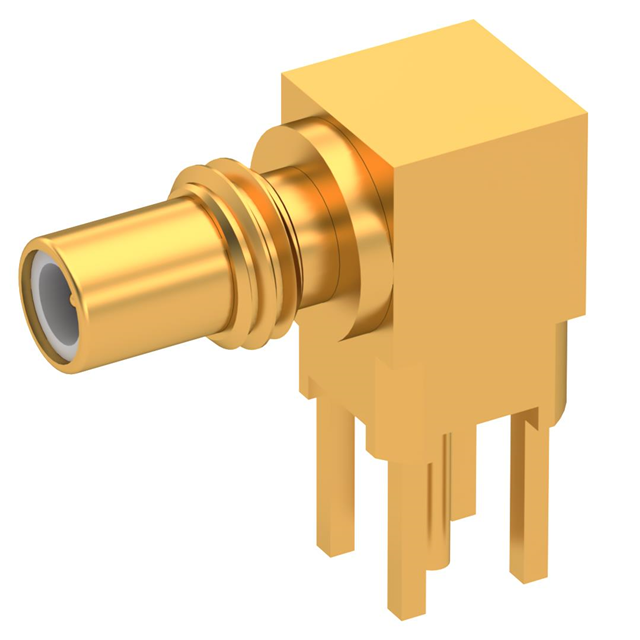

Specification	7010-1511-050

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMC
Connector Type	Jack, Male Pin
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	12.4 GHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder
Voltage Rating	250 V

7010-1511 Series

Part	Mating Cycles	Body Material	Voltage Rating	Body Finish	Center Contact Plating	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Connector Type	Center Contact Material	Connector Style	Impedance	Fastening Type	Mounting Type	Housing Color	Contact Termination	Shield Termination	Frequency - Max	Number of Ports
Radiall USA, Inc. 7010-1511-050	500 cycles	Brass	250 V	Gold	Gold	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Jack Male Pin	Beryllium Copper	SSMC	50 Ohm	Threaded	Right Angle Through Hole	Gold	Solder	Solder	12.4 GHz	1
Radiall USA, Inc. 7010-1511-041	500 cycles	Beryllium Copper	250 V	Gold	Gold	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Jack Male Pin	Beryllium Copper	SSMC	50 Ohm	Threaded	Right Angle Through Hole	Gold	Solder	Solder	12.4 GHz	1
Radiall USA, Inc. 7010-1511-000	500 cycles	Beryllium Copper	250 V	Gold	Gold	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Jack Male Pin	Beryllium Copper	SSMC	50 Ohm	Threaded	Right Angle Through Hole	Gold	Solder	Solder	12.4 GHz	1
