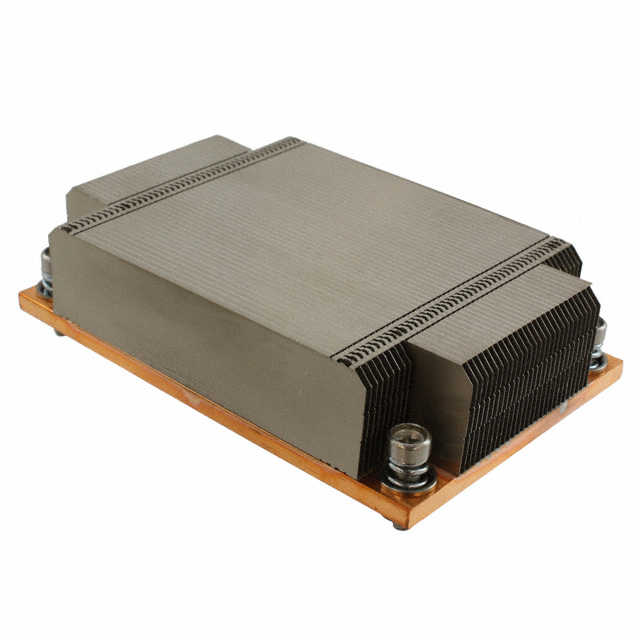

DHS-B10670-04A
Delta Electronics
HEATSINK ASSY LGA2011 NARROW
Deep-Dive with AI
Search across all available documentation for this part.
DHS-B10670-04A
Delta Electronics
HEATSINK ASSY LGA2011 NARROW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DHS-B10670-04A |
|---|---|
| Attachment Method | Bolt On |
| Fin Height | 1.004 in |
| Fin Height | 25.5 mm |
| Material | Aluminum |
| Package Cooled | LGA |
| Shape | Rectangular, Fins |
| Thermal Resistance @ Natural | 0.26 °C/W |
| Type | Board Level |
| Width [y] | 2.756 in |
| Width [y] | 70 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 49.66 | |
| 10 | $ 46.73 | |||
| 25 | $ 43.81 | |||
| 50 | $ 40.89 | |||
| 100 | $ 39.43 | |||
| 250 | $ 37.24 | |||
Description
General part information
DHS-B10670 Series
Heat Sink LGA Aluminum Board Level
