Specification	2240901033

Cable Termination	Crimp
Color	Black, Individual
Connector Type	Socket to Individual Wire Leads
Contact Finish	Tin
Length	0.984 ft
Number of Positions	3
Number of Rows	1
Pitch - Connector	0.098 in
Shielding	Unshielded

224090 Series

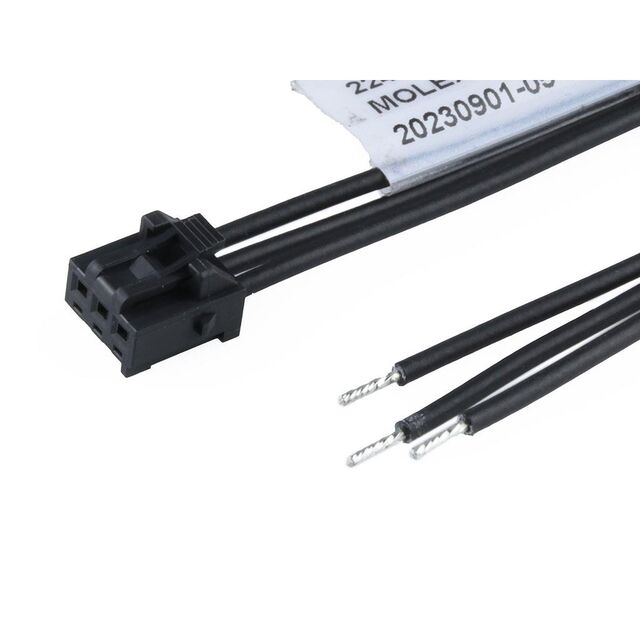

KK Plus 250-to-Pigtail Off-the-Shelf (OTS) Cable Assembly, 2.50mm Pitch, Single Row, 600.00mm Length, 3 Circuits, Black

Part	Number of Positions	Shielding	Color	Contact Finish	Pitch - Connector	Connector Type	Number of Rows	Cable Termination	Length
Molex 2240901053	5	Unshielded	Black Individual	Tin	0.098 in	Socket to Individual Wire Leads	1	Crimp	0.984 ft
Molex 2240901052	5	Unshielded	Black Individual	Tin	0.098 in	Socket to Individual Wire Leads	1	Crimp	0.492 ft
Molex 2240901064	6	Unshielded	Black Individual	Tin	0.098 in	Socket to Individual Wire Leads	1	Crimp	1.97 ft
Molex 2240901063	6	Unshielded	Black Individual	Tin	0.098 in	Socket to Individual Wire Leads	1	Crimp	0.984 ft
Molex 2240901082	8	Unshielded	Black Individual	Tin	0.098 in	Socket to Individual Wire Leads	1	Crimp	0.492 ft
Molex 2240901054	5	Unshielded	Black Individual	Tin	0.098 in	Socket to Individual Wire Leads	1	Crimp	1.97 ft
Molex 2240901062	6	Unshielded	Black Individual	Tin	0.098 in	Socket to Individual Wire Leads	1	Crimp	0.492 ft
Molex 2240901033	3	Unshielded	Black Individual	Tin	0.098 in	Socket to Individual Wire Leads	1	Crimp	0.984 ft
Molex 2240901044	4	Unshielded	Black Individual	Tin	0.098 in	Socket to Individual Wire Leads	1	Crimp	1.97 ft
Molex 2240901034	3	Unshielded	Black Individual	Tin	0.098 in	Socket to Individual Wire Leads	1	Crimp	1.97 ft
