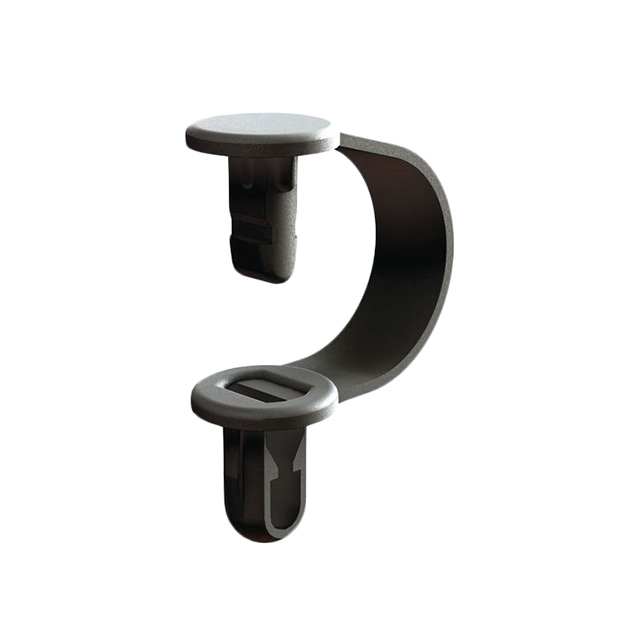

CH-1-10BK

Active

Essentra Access Solutions

FASTENER, PUSH MOUNT CABLE CLAMP, 9.5 MM, PP (POLYPROPYLENE), BLACK, 44.5 MM, 7.5 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, PUSH MOUNT CABLE CLAMP, 9.5 MM, PP (POLYPROPYLENE), BLACK, 44.5 MM, 7.5 MM

Technical Specifications

Parameters and characteristics for this part

Specification	CH-1-10BK

Color	Black
Height [z]	0.56 in
Height [z]	14.22 mm
Length	44.45 mm
Length	1.75 in
Material Flammability Rating	UL94 HB
Material Thickness	0.04 in
Material Thickness	1.02 mm
Mounting Type	Push In
Panel Hole Size	6.35 mm
Panel Hole Size	0.25 in
Panel Thickness [Max]	2.39 mm
Panel Thickness [Max]	0.094 "
Panel Thickness [Min]	0.79 mm
Panel Thickness [Min]	0.031 "
Type	Bendable, Clip
Type Attributes	Snap Closure
Width	0.297 in
Width	7.54 mm

Part	Material Flammability Rating	Type	Type Attributes	Height [z]	Height [z]	Length	Length	Color	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Mounting Type	Panel Hole Size	Panel Hole Size	Width	Width	Material Thickness	Material Thickness
Essentra Access Solutions CH-1-10	UL94 HB	Bendable Clip	Snap Closure	0.56 in	14.22 mm	44.45 mm	1.75 in	Natural	2.39 mm	0.79 mm	0.094 "	0.031 "	Push In	6.35 mm	0.25 in	0.297 in	7.54 mm	0.04 in	1.02 mm
Essentra Access Solutions CH-1-10BK	UL94 HB	Bendable Clip	Snap Closure	0.56 in	14.22 mm	44.45 mm	1.75 in	Black	2.39 mm	0.79 mm	0.094 "	0.031 "	Push In	6.35 mm	0.25 in	0.297 in	7.54 mm	0.04 in	1.02 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Bendable Black Push In 0.375" (9.53mm)
