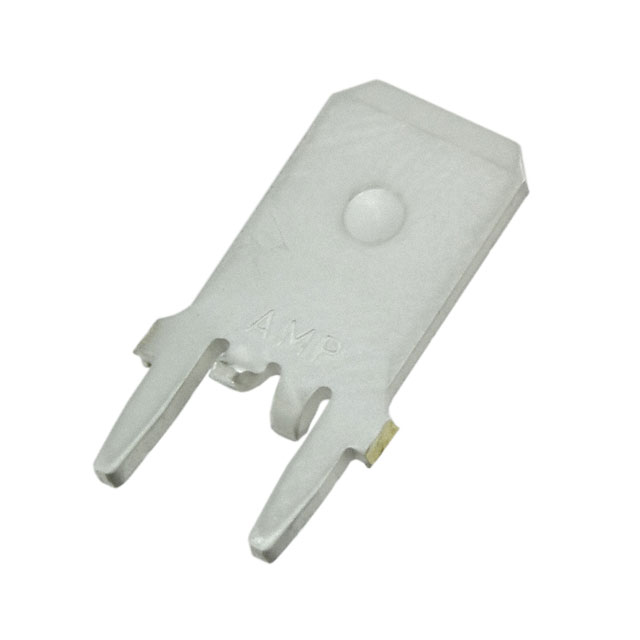

1217861-1
ActiveTE Connectivity AMP Connectors
CONN QC TAB 0.250 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217861-1
ActiveTE Connectivity AMP Connectors
CONN QC TAB 0.250 SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217861-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Male |
| Insulation | Non-Insulated |
| Length - Overall | 14.02 mm |
| Length - Overall | 0.552 in |
| Mounting Type | Through Hole |
| Tab Length | 0.352 in |
| Tab Length | 8.94 mm |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.08 | |||
| 25 | $ 0.08 | |||
| 50 | $ 0.07 | |||
| 100 | $ 0.07 | |||
| 250 | $ 0.06 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.06 | |||
| 2500 | $ 0.05 | |||
| Tape & Reel (TR) | 10000 | $ 0.04 | ||
| 30000 | $ 0.04 | |||
| 50000 | $ 0.03 | |||
1217861 Series
CONN QC TAB 0.250 SOLDER
| Part | Termination | Contact Material | Contact Finish | Insulation | Tab Width | Tab Width | Length - Overall | Length - Overall | Mounting Type | Terminal Type | Tab Thickness | Tab Thickness | Tab Length | Tab Length | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217861-1 | Solder | Brass | Tin | Non-Insulated | 6.35 mm | 0.25 in | 14.02 mm | 0.552 in | Through Hole | Standard | 0.032 in | 0.81 mm | 0.352 in | 8.94 mm | Male |
Description
General part information
1217861 Series
0.250" (6.35mm) Quick Connect Male Solder Connector Non-Insulated
