657-15ABPEN

Active

Wakefield-Vette

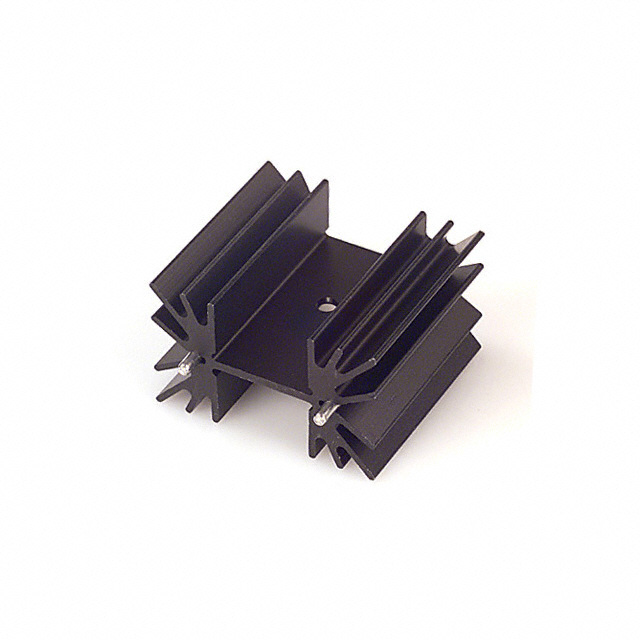

HEATSINK TO-220 W/PINS BLK 1.5"

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK TO-220 W/PINS BLK 1.5"

Technical Specifications

Parameters and characteristics for this part

Specification	657-15ABPEN

Attachment Method	PC Pin, Bolt On
Fin Height	38.1 mm
Fin Height	1.5 in
Length [x]	1 in
Length [x]	25.4 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220, TO-218, TO-247
Power Dissipation @ Temperature Rise	6 W
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	3.3 °C/W
Type	Board Level, Vertical
Width [x]	41.91 mm
Width [x]	1.65 in

Part	Type	Width [x]	Width [x]	Fin Height	Fin Height	Thermal Resistance @ Forced Air Flow	Length [x]	Length [x]	Shape	Package Cooled	Material Finish	Attachment Method	Material	Power Dissipation @ Temperature Rise
Wakefield-Vette 657-15ABPEN	Board Level Vertical	41.91 mm	1.65 in	38.1 mm	1.5 in	3.3 °C/W	1 in	25.4 mm	Rectangular Fins	TO-218 TO-220 TO-247	Black Anodized	Bolt On PC Pin	Aluminum	6 W
Wakefield-Vette 657-15ABPESC	Board Level Vertical	41.91 mm	1.65 in	38.1 mm	1.5 in	3.3 °C/W	1 in	25.4 mm	Rectangular Fins	TO-218 TO-220 TO-247	Black Anodized	Clip PC Pin	Aluminum	6 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-218, TO-220, TO-247 Aluminum 6.0W @ 38°C Board Level, Vertical
