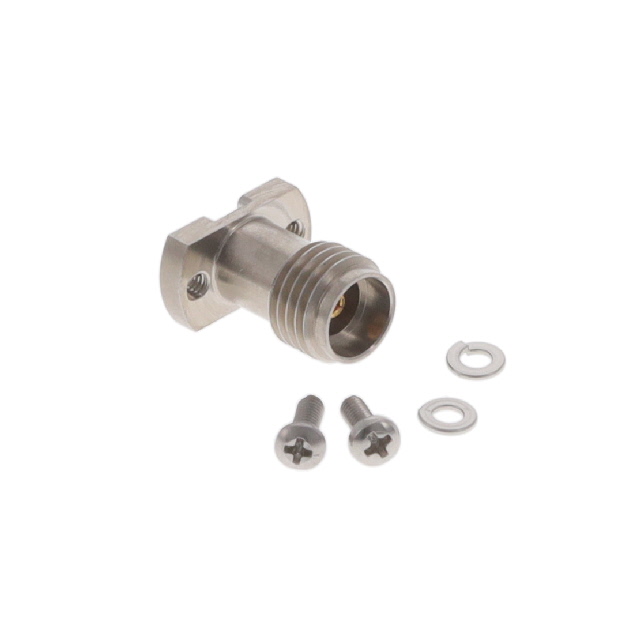

03K722-40MS3

Active

Rosenberger

3.50MM VERTICAL JACK PCB 26.5GHZ

Search across all available documentation for this part.

Active

Rosenberger

3.50MM VERTICAL JACK PCB 26.5GHZ

Technical Specifications

Parameters and characteristics for this part

Specification	03K722-40MS3

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	3.5 mm
Connector Type	Female Socket, Jack
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	26.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Shield Termination	Screw
Voltage Rating	335 V

3.50MM VERTICAL JACK PCB 26.5GHZ

Part	Connector Type	Frequency - Max [Max]	Impedance	Mounting Feature	Center Contact Plating	Dielectric Material	Mating Cycles	Connector Style	Contact Termination	Center Contact Material	Body Material	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Shield Termination	Housing Color
Rosenberger 03K722-40MS3	Female Socket, Jack	26.5 GHz	50 Ohms	Flange	Gold	Polytetrafluoroethylene (PTFE)	500	3.5 mm	Compression	Beryllium Copper	Stainless Steel	1	0 °C	85 °C	335 V	Screw	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3.5mm Connector Jack, Female Socket 50 Ohms Panel Mount Compression
