ActiveMill-Max Manufacturing Corp.

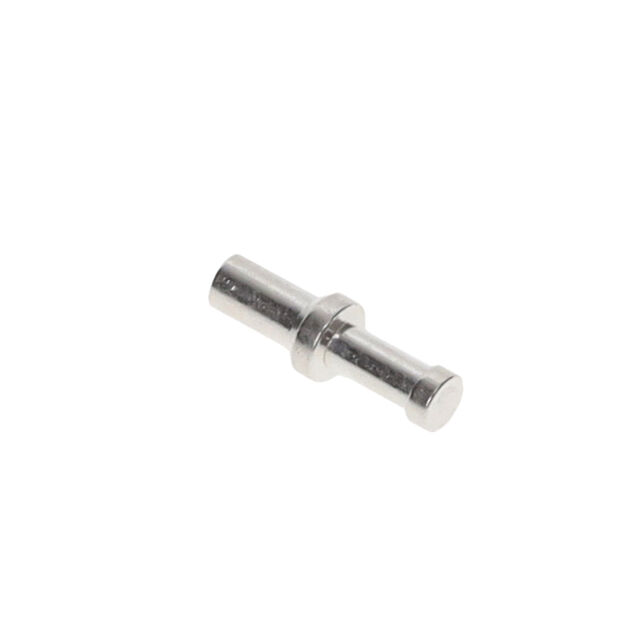

TERM TURRET SINGLE L=3.45MM
Deep-Dive with AI
Search across all available documentation for this part.
2109-2-00-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.
TERM TURRET SINGLE L=3.45MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2109-2-00-44-00-00-07-0 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 1.57 mm |
| Contact Finish | Silver |
| Contact Finish Thickness | 300 µin |
| Contact Finish Thickness | 7.62 µm |
| Contact Material | Brass Alloy |
| Diameter - Turret Head [diameter] | 1.27 mm |
| Diameter - Turret Head [diameter] | 0.05 in |
| Flange Diameter [diameter] | 1.77 mm |
| Flange Diameter [diameter] | 0.07 in |
| Insulation | Non-Insulated |
| Length - Above Board | 3.45 mm |
| Length - Above Board | 0.136 in |
| Length - Below Flange [x] | 0.085 in |
| Length - Below Flange [x] | 2.16 mm |
| Length - Overall [x] | 0.221 " |
| Length - Overall [x] | 5.61 mm |
| Mounting Hole Diameter [diameter] | 1.32 mm |
| Mounting Hole Diameter [diameter] | 0.052 in |
| Mounting Type | Through Hole |
| Number of Turrets | Single |
| Staking Side ID [diameter] | 0.028 in |
| Staking Side ID [diameter] | 0.71 mm |
| Staking Side OD [diameter] | 1.19 mm |
| Staking Side OD [diameter] | 0.047 " |
| Terminal Type | Single End |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.79 | |
| 10 | $ 0.60 | |||
| 25 | $ 0.54 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.36 | |||
| 2500 | $ 0.33 | |||
Description
General part information
2109-2 Series
Terminal Turret Connector Single End 0.136" (3.45mm) Silver
