H3AAH-1406G

Active

Assmann WSW Components

IDC CBL - HHSC14H/AE14G/HHSC14H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSC14H/AE14G/HHSC14H

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Cable Termination	Contact Finish	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Length	Length	Length	Shielding	Pitch - Cable	Pitch - Cable	Number of Rows	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]
Assmann WSW Components H3AAH-1406M	Socket to Socket	IDC	Gold	Multiple Ribbon	15 µin	0.38 µm	14	152.4 mm	6 "	0.5 '	Unshielded	0.05 "	1.27 mm	2	0.1 in	2.54 mm
Assmann WSW Components H3AAH-1406G	Socket to Socket	IDC	Gold		15 µin	0.38 µm	14	152.4 mm	6 "	0.5 '	Unshielded	0.05 "	1.27 mm	2	0.1 in	2.54 mm
Assmann WSW Components H3AAH-1436M	Socket to Socket	IDC	Gold	Multiple Ribbon	15 µin	0.38 µm	14				Unshielded	0.05 "	1.27 mm	2	0.1 in	2.54 mm	3 ft	914.4 mm
Assmann WSW Components H3AAH-1418G	Socket to Socket	IDC	Gold		15 µin	0.38 µm	14				Unshielded	0.05 "	1.27 mm	2	0.1 in	2.54 mm	1.5 ft	457.2 mm
Assmann WSW Components H3AAH-1418M	Socket to Socket	IDC	Gold	Multiple Ribbon	15 µin	0.38 µm	14				Unshielded	0.05 "	1.27 mm	2	0.1 in	2.54 mm	1.5 ft	457.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

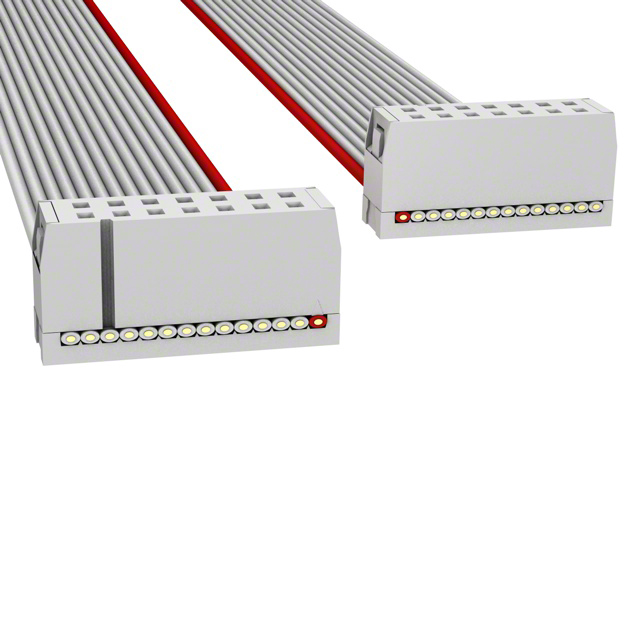

14 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
