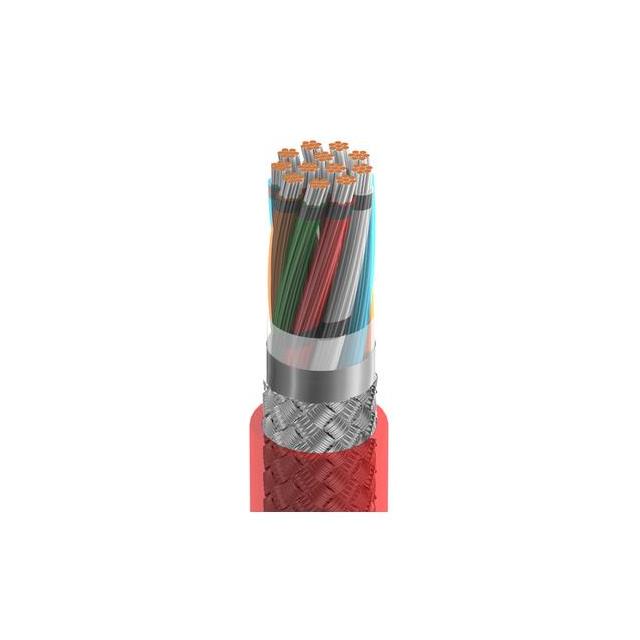

Specification	83612 0021000

Cable Type	Conductor, Multi
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	28
Jacket (Insulation) Diameter	0.265 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length	1000 ft
Number of Conductors	12
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-70 °C
Ratings	Style, UL, CMP
Shield Coverage	85%, 100%
Shield Material	Aluminum, Tinned, Copper
Shield Type	Braid, Foil
Usage	Instrumentation, Control, Audio
Voltage	300 V
Wire Gauge	20 AWG

83612 Series

Part	Ratings	Conductor Material	Length	Cable Type	Voltage	Number of Conductors	Shield Type	Jacket (Insulation) Thickness	Operating Temperature (Min)	Operating Temperature (Max)	Usage	Jacket Color	Jacket (Insulation) Material	Jacket (Insulation) Diameter	Conductor Strand Count	Conductor Strand Gauge	Wire Gauge	Conductor Insulation	Shield Material	Shield Coverage
Belden Inc. 83612 002500	CMP Style UL	Copper Tinned	500 ft	Conductor Multi	300 V	12	Braid Foil	0.014 in	-70 °C	200 °C	Audio Control Instrumentation	Red	Fluorinated Ethylene-Propylene (FEP) Plenum	0.265 in	7 Strands	28	20 AWG	Fluorinated Ethylene-Propylene (FEP)	Aluminum Copper Tinned	100% 85%
Belden Inc. 83612 0021000	CMP Style UL	Copper Tinned	1000 ft	Conductor Multi	300 V	12	Braid Foil	0.014 in	-70 °C	200 °C	Audio Control Instrumentation	Red	Fluorinated Ethylene-Propylene (FEP) Plenum	0.265 in	7 Strands	28	20 AWG	Fluorinated Ethylene-Propylene (FEP)	Aluminum Copper Tinned	100% 85%
