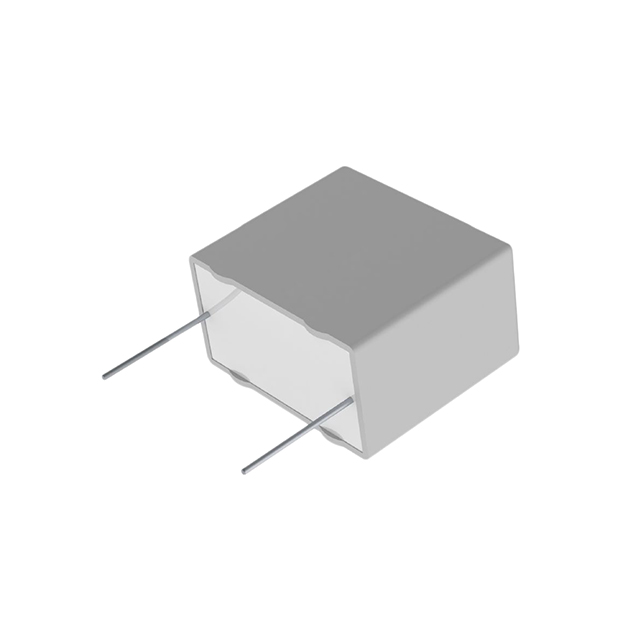

SMR27.5226J50F13L4TRAY

Obsolete

KEMET

CAP FILM 22UF 5% 50VDC RADIAL

Search across all available documentation for this part.

Obsolete

KEMET

CAP FILM 22UF 5% 50VDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	SMR27.5226J50F13L4TRAY

Applications	General Purpose
Capacitance	22 µF
Dielectric Material	Polyphenylene Sulfide (PPS), Metallized
Features	High Temperature
Height - Seated (Max) [Max]	0.965 "
Height - Seated (Max) [Max]	24.5 mm
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	31.5 mm
Size / Dimension [x]	1.24 in
Size / Dimension [y]	14.5 mm
Size / Dimension [y]	0.571 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	30 V
Voltage Rating - DC	50 VDC

Part	Dielectric Material	Tolerance	Capacitance	Lead Spacing	Lead Spacing	Termination	Mounting Type	Applications	Voltage Rating - AC	Voltage Rating - DC	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET SMR27.5226M50F13L4TRAY	Polyphenylene Sulfide (PPS) Metallized	20 %	22 µF	27.5 mm	1.083 in	PC Pins	Through Hole	General Purpose	30 V	50 VDC	14.5 mm	0.571 in	31.5 mm	1.24 in	-55 °C	150 °C	High Temperature	Radial	0.965 "	24.5 mm
KEMET SMR27.5226J50F13L4TRAY	Polyphenylene Sulfide (PPS) Metallized	5 %	22 µF	27.5 mm	1.083 in	PC Pins	Through Hole	General Purpose	30 V	50 VDC	14.5 mm	0.571 in	31.5 mm	1.24 in	-55 °C	150 °C	High Temperature	Radial	0.965 "	24.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22 µF Film Capacitor 30V 50V Polyphenylene Sulfide (PPS), Metallized Radial
