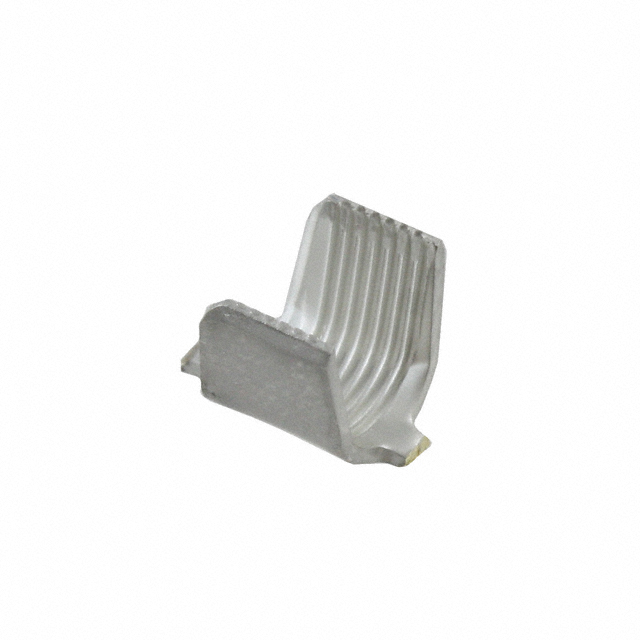

62295-1
ActiveTE Connectivity AMP Connectors
AMVAR SPLC 7000-12000 025TPBR ROHS COMPLIANT: YES
62295-1
ActiveTE Connectivity AMP Connectors
AMVAR SPLC 7000-12000 025TPBR ROHS COMPLIANT: YES
Description
General part information
62295 Series
Pigtail Splice, 12 – 10 AWG, 3.46 – 6 mm² Wire, 3 Splice Capacity, Serrated, 7000 – 12000 CMA, Brass, 7 Serration, 5.72 mm [.225 in] Length, AMPLIVAR
Technical Specifications
Parameters and characteristics for this part
| Specification | 62295-1 |
|---|---|
| Features | Serrated Mating Area |
| Style | Pigtail |
| Terminal Type | Splice |
| Termination | Crimp |
| Wire Gauge (CMA) (Max) | 12000 CMA |
| Wire Gauge (CMA) (Min) | 7000 CMA |
