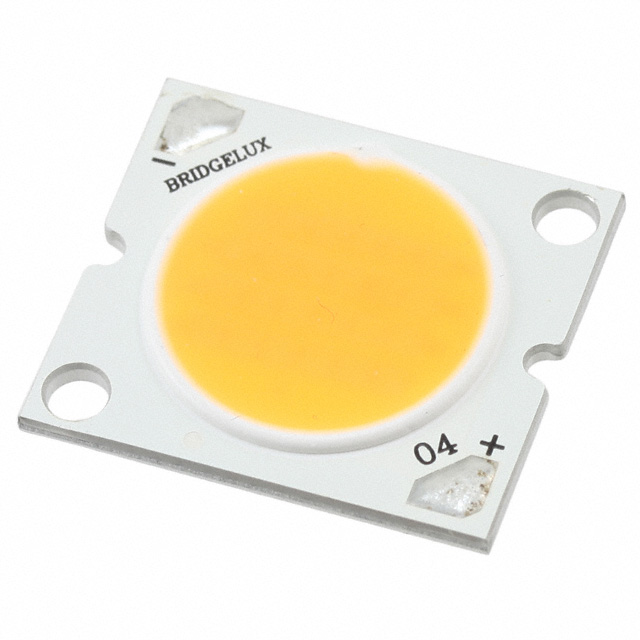

BXRA-W1800-00S0E

Obsolete

BRIDGELUX

LED COB ES WARM WHT RECT 2700K

Search across all available documentation for this part.

Obsolete

BRIDGELUX

LED COB ES WARM WHT RECT 2700K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) ES White, Warm Rectangle

Technical documentation and resources

Specification	BXRA-W1800-00S0E	BXRA-W1800 Series

CCT (K)	2700 K	2700 K
Color	White, Warm	White, Warm
Configuration	Rectangle	Rectangle
CRI (Color Rendering Index)	80	80
Current - Max [Max]	1 A	1 A
Height [z]	3.5 mm	3.5 mm
Lens Type	Domed	Domed
Lumens/Watt @ Current - Test	69 lm/W	69 - 75 lm/W
Luminous Flux @ Current/Temperature	1840 lm	1840 - 2000 lm
Size / Dimension [x]	22.8 mm	22.8 mm
Size / Dimension [y]	25.8 mm	25.8 mm
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	38.1 V	38.1 V

Part	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Viewing Angle	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	CCT (K)	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Height [z]	Configuration	Color	Lens Type	Type
BRIDGELUX BXRA-W1800-00S0E	80	38.1 V	120 °	1840 lm	69 lm/W	2700 K	25.8 mm	22.8 mm	1 A	3.5 mm	Rectangle	Warm, White	Domed	Chip On Board (COB)
BRIDGELUX BXRA-W1800-00Q0E	80	38.1 V	120 °	2000 lm	75 lm/W		25.8 mm	22.8 mm	1 A	3.5 mm	Rectangle	Warm, White	Domed	Chip On Board (COB)
