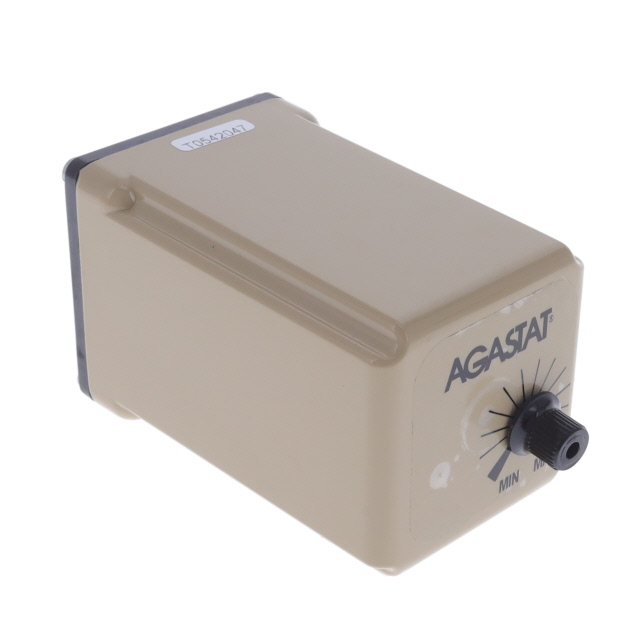

SCERX22ACA

Active

TE Connectivity Aerospace, Defense and Marine

RELAY TIME DELAY 30SEC 5A 120V

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

RELAY TIME DELAY 30SEC 5A 120V

Technical Specifications

Parameters and characteristics for this part

RELAY TIME DELAY 30SEC 5A 120V

Part	Circuit	Termination Style	Contact Rating @ Voltage	Relay Type	Delay Time [Max]	Delay Time [Min]	Timing Adjustment Method	Timing Initiate Method	Voltage - Supply	Function	Mounting Type
TE Connectivity Aerospace, Defense and Marine SCERX22ACA	DPDT (2 Form C)	Plug In, 8 Pin (Octal)	5 A	Mechanical Relay	30 Sec	1 Sec	Hand Dial	Input Voltage	120 VAC, 125 V	Off-Delay	Socketable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Off-Delay Time Delay Relay DPDT (2 Form C) 1 Sec ~ 30 Sec Delay 5A @ 120VAC Socketable

Technical documentation and resources

No documents available
