Specification	SIR1-03-L-S-A

Connector Type	Non-Gendered, Compression Contact
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Material	Phosphor Bronze
Mounting Type	Right Angle, Surface Mount
Number of Contacts	3
Number of Rows	1
Pitch	0.1 in

SIR1 Series

Board to Board & Mezzanine Connectors .100" Right-Angle One-Piece Interface

Part	Number of Contacts	Material	Pitch	Number of Rows	Contact Finish Thickness	Connector Type	Contact Finish	Mounting Type
Samtec Inc. SIR1-03-L-S-A	3	Phosphor Bronze	0.1 in	1	10 Ąin	Compression Contact Non-Gendered	Gold	Right Angle Surface Mount

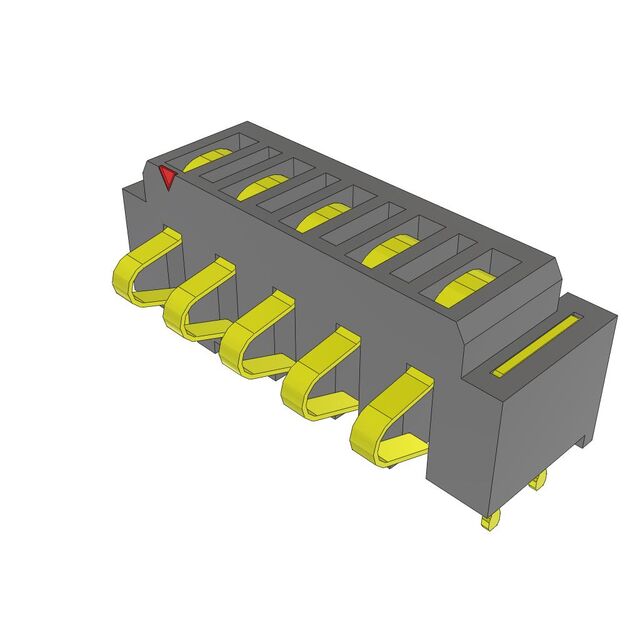

Samtec Inc. SIR1-05-S-S	5	Phosphor Bronze	0.1 in	1	30 µin	Compression Contact Non-Gendered	Gold	Right Angle Surface Mount
Samtec Inc. SIR1-03-L-S-A-K-TR	3	Phosphor Bronze	0.1 in	1	10 Ąin	Compression Contact Non-Gendered	Gold	Right Angle Surface Mount
Samtec Inc. SIR1-07-S-S-A-K-TR	7	Phosphor Bronze	0.1 in	1	30 µin	Compression Contact Non-Gendered	Gold	Right Angle Surface Mount
Samtec Inc. SIR1-15-L-S-A-K-TR	15	Phosphor Bronze	0.1 in	1	10 Ąin	Compression Contact Non-Gendered	Gold	Right Angle Surface Mount
Samtec Inc. SIR1-15-L-S-K-TR	15	Phosphor Bronze	0.1 in	1	10 Ąin	Compression Contact Non-Gendered	Gold	Right Angle Surface Mount
Samtec Inc. SIR1-03-S-S-TR	3	Phosphor Bronze	0.1 in	1	30 µin	Compression Contact Non-Gendered	Gold	Right Angle Surface Mount
Samtec Inc. SIR1-10-S-S-A	10	Phosphor Bronze	0.1 in	1	30 µin	Compression Contact Non-Gendered	Gold	Right Angle Surface Mount
Samtec Inc. SIR1-05-L-S-K	5	Phosphor Bronze	0.1 in	1	10 Ąin	Compression Contact Non-Gendered	Gold	Right Angle Surface Mount

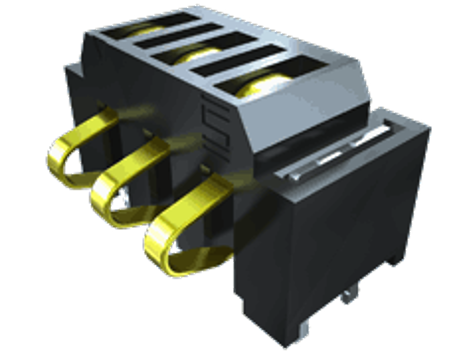

Samtec Inc. SIR1-05-L-S-A	5	Phosphor Bronze	0.1 in	1	10 Ąin	Compression Contact Non-Gendered	Gold	Right Angle Surface Mount
