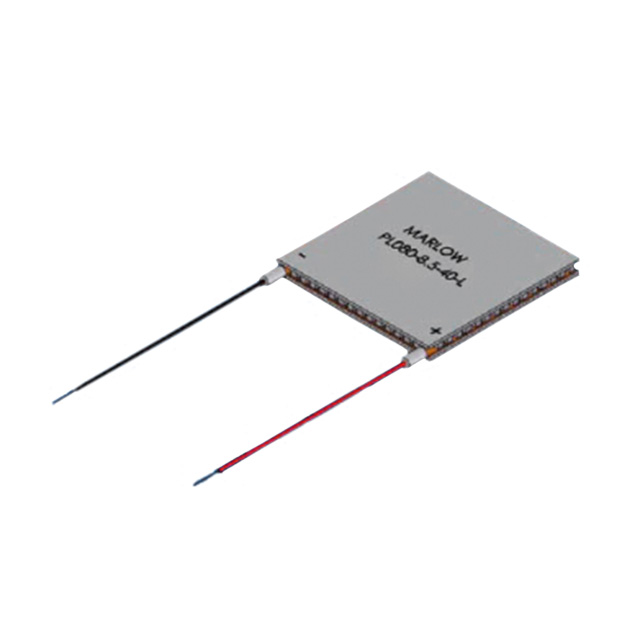

Specification	PL080-8.5-40-01LS

Current - Max	8.5 A
Delta Tmax	66 °C
Features	Lapped, Sealed, Lead Wires
Height	3.33 mm
Maximum Power Dissipation (Qmax)	78 W
Number of Stages	1
Operating Temperature	85 °C
Resistance	1.45 Ohms
Size / Dimension Length	40 mm
Size / Dimension Shape	Square
Size / Dimension Width	40 mm
Type	TEC (Thermoelectric Cooler)
Voltage - Max	14.7 V

PL080 Series

Part	Features	Operating Temperature	Voltage - Max	Resistance	Size / Dimension Width	Size / Dimension Shape	Size / Dimension Length	Height	Current - Max	Maximum Power Dissipation (Qmax)	Delta Tmax	Number of Stages	Type
Marlow Industries, Inc. PL080-8.5-40-02	Lead Wires	85 °C	14.7 V	1.45 Ohms	40 mm	Square	40 mm	4.17 mm	8.5 A	78 W	66 °C	1	TEC (Thermoelectric Cooler)
Marlow Industries, Inc. PL080-8.5-40-01L	Lapped Lead Wires	85 °C	14.7 V	1.45 Ohms	40 mm	Square	40 mm	3.33 mm	8.5 A	78 W	66 °C	1	TEC (Thermoelectric Cooler)
Marlow Industries, Inc. PL080-8.5-40-01	Lead Wires	85 °C	14.7 V	1.45 Ohms	40 mm	Square	40 mm	3.48 mm	8.5 A	78 W	66 °C	1	TEC (Thermoelectric Cooler)
Marlow Industries, Inc. PL080-8.5-40-02L	Lapped Lead Wires	85 °C	14.7 V	1.45 Ohms	40 mm	Square	40 mm	3.94 mm	8.5 A	78 W	66 °C	1	TEC (Thermoelectric Cooler)
Marlow Industries, Inc. PL080-8.5-40-01LS	Lapped Lead Wires Sealed	85 °C	14.7 V	1.45 Ohms	40 mm	Square	40 mm	3.33 mm	8.5 A	78 W	66 °C	1	TEC (Thermoelectric Cooler)
