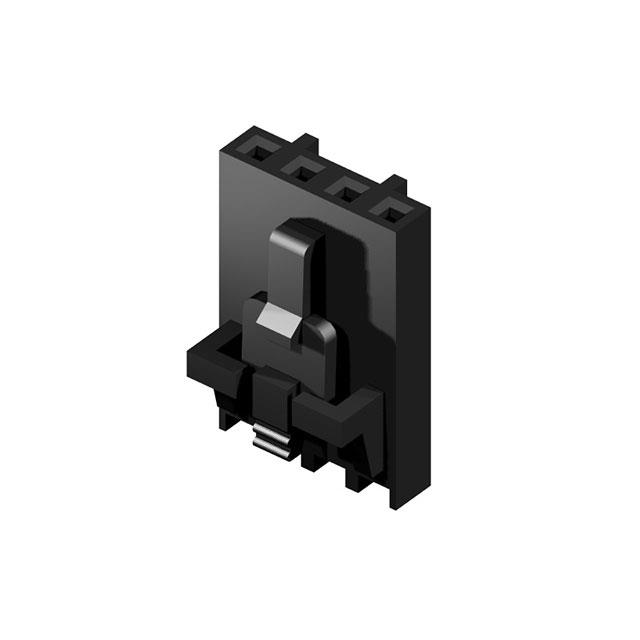

CI3304S0010

Active

Cvilux USA

CONN RCPT HSG 4POS 2.54MM

Search across all available documentation for this part.

DocumentsCI3301SE

Active

Cvilux USA

CONN RCPT HSG 4POS 2.54MM

DocumentsCI3301SE

Technical Specifications

Parameters and characteristics for this part

Specification	CI3304S0010

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

CONN RCPT HSG 4POS 2.54MM

Part	Contact Termination	Note	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Color	Pitch [x]	Pitch [x]	Connector Type	Number of Positions	Insulation Material	Fastening Type	Number of Rows
Cvilux USA CI3304S0010	Crimp	Contacts Not Included	Female Socket	-40 °C	105 ░C	Free Hanging (In-Line)	Black	2.54 mm	0.1 in	Receptacle	4	Polybutylene Terephthalate (PBT)	Latch Lock	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
