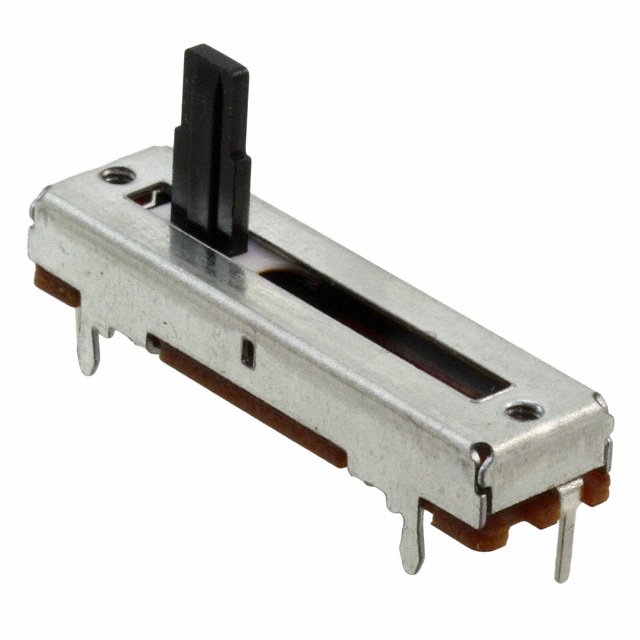

PTA2043-2015CPB103

Active

Bourns Inc.

SLIDE POT 10K OHM 0.1W TOP 20MM

Search across all available documentation for this part.

Active

Bourns Inc.

SLIDE POT 10K OHM 0.1W TOP 20MM

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Tolerance	Power (Watts)	Power (Watts)	Adjustment Type	Fader Type	Travel Range	Resistance	Mounting Type
Bourns Inc. PTA2043-2015DPB103	1.378 "	9 mm	0.354 in	6.5 mm	35 mm	0.256 in	20 %	0.1 W	0.1 W	Top	Standard	20 mm	10000 Ohms	Through Hole
Bourns Inc. PTA2043-2010DPB103	1.378 "	9 mm	0.354 in	6.5 mm	35 mm	0.256 in	20 %	0.1 W	0.1 W	Top	Standard	20 mm	10000 Ohms	Through Hole
Bourns Inc. PTA2043-2015DPB102	1.378 "	9 mm	0.354 in	6.5 mm	35 mm	0.256 in	20 %	0.1 W	0.1 W	Top	Standard	20 mm	1000 Ohms	Through Hole
Bourns Inc. PTA2043-2015CPB103	1.378 "	9 mm	0.354 in	6.5 mm	35 mm	0.256 in	20 %	0.1 W	0.1 W	Top	Standard	20 mm	10000 Ohms	Through Hole
Bourns Inc. PTA2043-2210DPB103	1.378 "	9 mm	0.354 in	6.5 mm	35 mm	0.256 in	20 %	0.1 W	0.1 W	Top	Standard	20 mm	10000 Ohms	Through Hole
Bourns Inc. PTA2043-2010CIA104	1.378 "	9 mm	0.354 in	6.5 mm	35 mm	0.256 in	20 %	50 mW	0.05 W	Top	Standard	20 mm	100 kOhms	Through Hole
Bourns Inc. PTA2043-2215CPB104	1.378 "	9 mm	0.354 in	6.5 mm	35 mm	0.256 in	20 %	0.1 W	0.1 W	Top	Standard	20 mm	100 kOhms	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 kOhms 0.1W, 1/10W Through Hole Slide Potentiometer Top Adjustment Type

Technical documentation and resources
