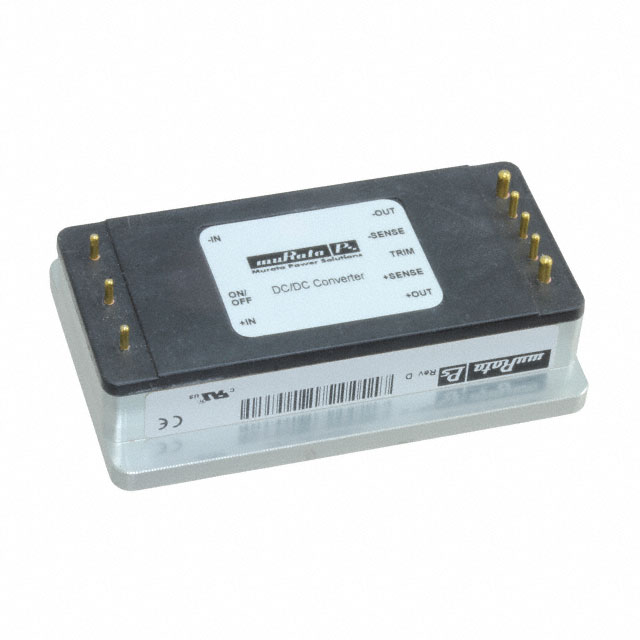

IRQ-5/20-T110N-C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 100W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 100W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IRQ-5/20-T110N-C	IRQ-5 Series

Applications	Railway, ITE (Commercial)	Railway, ITE (Commercial)
Control Features	Active Low, Enable	Active High, Enable, Active Low
Current - Output (Max) [Max]	20 A	20 A
Efficiency	85.5 %	85.5 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Quarter Brick	Quarter Brick, 1/4 Brick, 8-DIP Module
Power (Watts)	100 W	100 W
Size / Dimension [x]	57.9 mm	57.9 mm
Size / Dimension [x]	2.28 in	2.28 in
Size / Dimension [y]	1.45 in	1.45 in
Size / Dimension [y]	36.8 mm	36.8 mm
Size / Dimension [z]	12.7 mm	12.7 mm
Size / Dimension [z]	0.5 in	0.5 in
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	160 V	160 V
Voltage - Input (Min) [Min]	57.6 V	57.6 V
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	5 V	5 V

DC DC CONVERTER 5V 100W

Part	Number of Outputs	Package / Case	Mounting Type	Type	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Control Features	Features	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Isolation	Current - Output (Max) [Max]	Efficiency
Murata Power Solutions Inc. IRQ-5/20-T110PVF-C	1	Quarter Brick	Through Hole	Isolated Module	160 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Active High, Enable	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial), Railway	85 °C	-40 °C	5 V	57.6 V	100 W	3000 V	20 A	85.5 %
Murata Power Solutions Inc. IRQ-5/20-T110NVF-C	1	1/4 Brick, 8-DIP Module	Through Hole	Isolated Module	160 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Active Low, Enable	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial), Railway	85 °C	-40 °C	5 V	57.6 V	100 W	3000 V	20 A	85.5 %
Murata Power Solutions Inc. IRQ-5/20-T110PF-C	1	1/4 Brick, 8-DIP Module	Through Hole	Isolated Module	160 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Active High, Enable	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial), Railway	85 °C	-40 °C	5 V	57.6 V	100 W	3000 V	20 A	85.5 %
Murata Power Solutions Inc. IRQ-5/20-T110N-C	1	Quarter Brick	Through Hole	Isolated Module	160 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Active Low, Enable	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial), Railway	85 °C	-40 °C	5 V	57.6 V	100 W	3000 V	20 A	85.5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 5V 20A 57.6V - 160V Input
