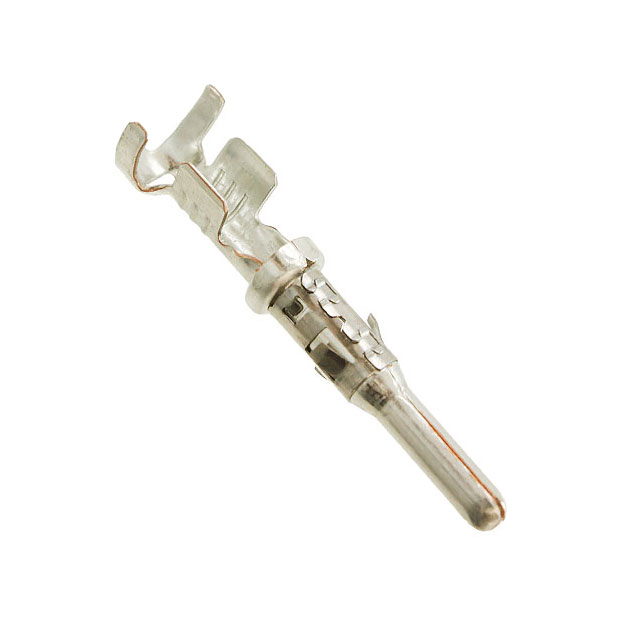

APKPB25H10002
ActiveITT Cannon, LLC
CONTACT PIN SZ 2.5MM CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APKPB25H10002
ActiveITT Cannon, LLC
CONTACT PIN SZ 2.5MM CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APKPB25H10002 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Size | 2.5 mm |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Features | Insulation Support |
| Type | Power, Stamped |
| Wire Gauge or Range - mm² [Max] | 1 mm² |
| Wire Gauge or Range - mm² [Min] | 0.5 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.01 | |
| 10 | $ 1.75 | |||
| 25 | $ 1.67 | |||
| 50 | $ 1.63 | |||
| 100 | $ 1.56 | |||
| 250 | $ 1.41 | |||
| 500 | $ 1.30 | |||
| 1000 | $ 1.11 | |||
| Tape & Reel (TR) | 3000 | $ 1.04 | ||
| 6000 | $ 0.99 | |||
| 9000 | $ 0.97 | |||
Description
General part information
APKPB Series
Pin Contact Size 2.5mm Crimp Gold
