1019-1511-000

Active

Radiall USA, Inc.

SMC M STR BHD SP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC M STR BHD SP

Technical Specifications

Parameters and characteristics for this part

Specification	1019-1511-000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.25 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

SMC M STR BHD SP

Part	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Impedance	Connector Type	Frequency - Max [Max]	Number of Ports	Body Finish	Housing Color	Body Material	Contact Termination	Includes	Insertion Loss	Mounting Feature	Center Contact Plating	Dielectric Material	Center Contact Material	Connector Style
Radiall USA, Inc. 1019-1511-000	500	-65 ░C	165 °C	Solder	50 Ohms	Jack, Male Pin	10 GHz	1	Gold	Gold	Brass	Solder Cup	1 Connector, 1 Lockwasher, 1 Nut	0.25 dB	Bulkhead - Rear Side Nut	Gold	Polytetrafluoroethylene (PTFE)	Brass	SMC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

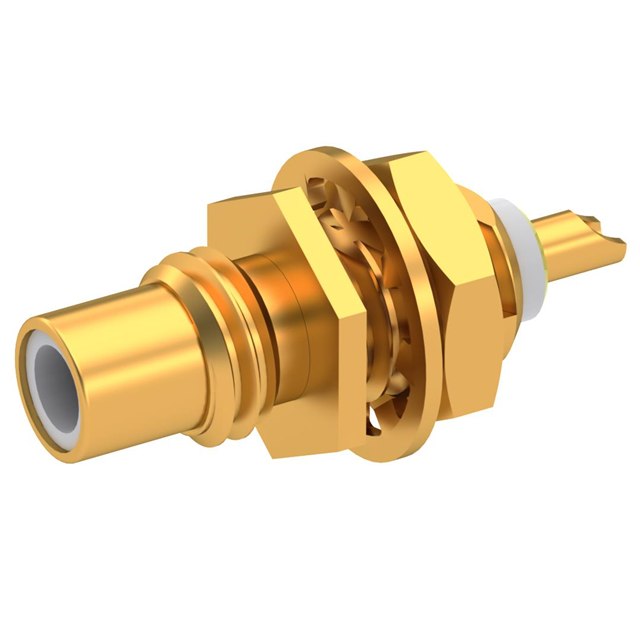

SMC Connector Jack, Male Pin 50 Ohms Panel Mount Solder Cup
