Technical Specifications
Parameters and characteristics for this part
| Specification | STA333SML |
|---|---|
| Function | Fully Integrated Processor |
| Interface | I2S |
| Mounting Type | Surface Mount |
| Number of Channels [custom] | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |

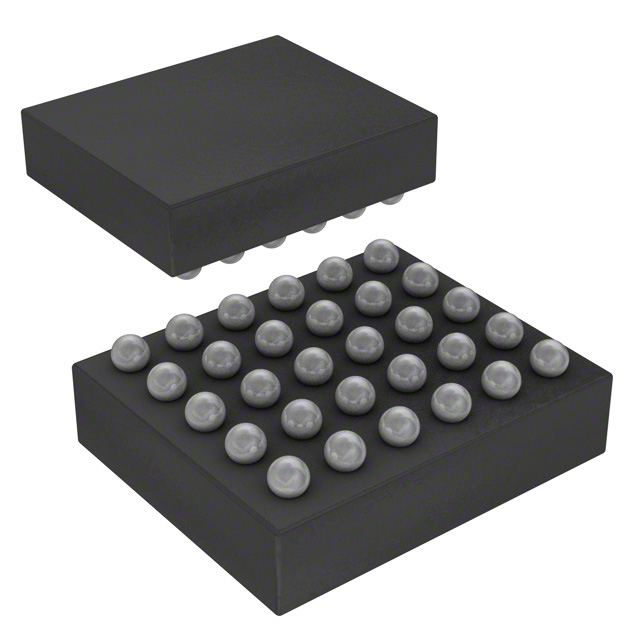

| Package / Case | CSPBGA, 30-WFBGA |
| Specifications | Full Flexible Amplification |
| Supplier Device Package | 30-CSP (3.24x2.57) |
| Voltage - Supply [Max] | 18 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
STA333W Series
The STA333W is an integrated circuit comprising digital audio processing, digital amplifier control and DDX®power output stage to create a high-power, single-chip DDX®solution for all-digital amplification with high quality and high efficiency.
The STA333W power section consists of four independent half-bridges stages. These can be configured via digital control to operate in different modes. 2 channels can be provided by two full bridges, providing up to 20 W + 20 W of power.
Also provided in the STA333W are new advanced AM radio interference reduction modes. The serial audio data input interface accepts all possible formats, including the popular I2S format. Three channels of DDX®processing are provided.
