AH1898-CA4-7
ActiveHALL EFFECT SWITCH, OMNIPOLAR HALL EFFECT SWITCH IC, 60 G, 50 G, 1.6 V, 3.6 V
Deep-Dive with AI
Search across all available documentation for this part.
AH1898-CA4-7
ActiveHALL EFFECT SWITCH, OMNIPOLAR HALL EFFECT SWITCH IC, 60 G, 50 G, 1.6 V, 3.6 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AH1898-CA4-7 |
|---|---|
| Current - Output (Max) [Max] | 2.5 mA |
| Current - Supply (Max) [Max] | 8 µA |
| Function | Omnipolar Switch |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Push-Pull |
| Package / Case | 4-UFBGA, WLBGA |
| Polarization | South Pole, North Pole |
| Sensing Range | Programmable |

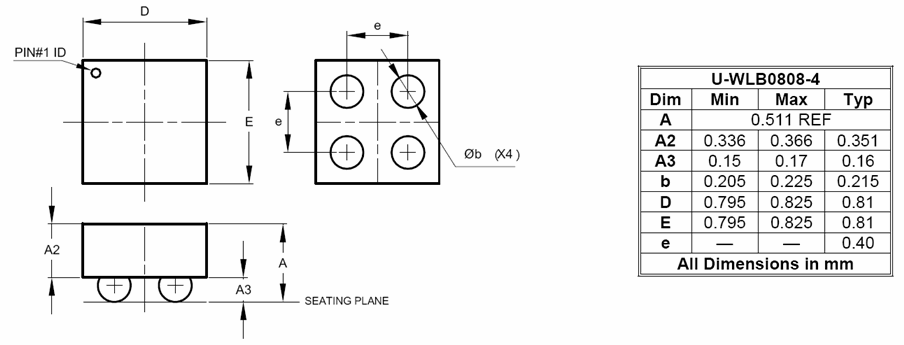

| Supplier Device Package | U-WLB0808-4 |
| Technology | Hall Effect |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.47 | |
| 5 | $ 0.41 | |||
| 10 | $ 0.39 | |||
| 25 | $ 0.36 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.33 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.28 | |||
| Digi-Reel® | 1 | $ 0.47 | ||
| 5 | $ 0.41 | |||
| 10 | $ 0.39 | |||
| 25 | $ 0.36 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.33 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.28 | |||
| Tape & Reel (TR) | 3000 | $ 0.23 | ||
| 6000 | $ 0.22 | |||
| 9000 | $ 0.21 | |||
| 15000 | $ 0.21 | |||
| 21000 | $ 0.20 | |||
| 30000 | $ 0.20 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.52 | |
| 10 | $ 0.39 | |||
| 25 | $ 0.37 | |||
| 50 | $ 0.36 | |||
| 100 | $ 0.36 | |||
Description
General part information
AH1898 Series
The AH1898 is a micropower magnetic range selectable (Bop/Brp) Omnipolar Hall-effect switch IC with internal pull up and pull down capability, designed for portable and battery powered consumer equipment such as cellular phones and portable PCs. To support battery powered equipment and low-voltage microcontrollers, the AH1898 can operate over the supply range of 1.6V to 3.6V and uses a hibernating clocking system to minimize the power consumption. The average supply current is only 4.3µA typical at 1.80V. The AH1898 has an 8kV ESD rating on the supply and output pins. To minimize PCB space the AH1898 is packaged in the small CSP package (0.81mm x 0.81mm typical).
Documents
Technical documentation and resources
