ELM611(TA)

Active

Everlight Electronics Co Ltd

OPTOISO 3.75KV OPEN COLL 5SOP

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

OPTOISO 3.75KV OPEN COLL 5SOP

Technical Specifications

Parameters and characteristics for this part

Specification	ELM611(TA)

Common Mode Transient Immunity (Min) [Min]	20 kV/µs
Current - DC Forward (If) (Max) [Max]	50 mA
Current - Output / Channel	50 mA
Data Rate	10 Mbps
Input Type	DC
Inputs - Side 1/Side 2 [custom]	0
Inputs - Side 1/Side 2 [custom]	1
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Open Collector, Schottky Clamped
Propagation Delay tpLH / tpHL (Max) [custom]	100 ns
Propagation Delay tpLH / tpHL (Max) [custom]	100 ns
Rise / Fall Time (Typ) [custom]	40 ns
Rise / Fall Time (Typ) [custom]	10 ns
Supplier Device Package	5-SOP
Voltage - Forward (Vf) (Typ)	1.45 V
Voltage - Isolation	3750 Vrms
Voltage - Supply	7 V

Part	Mounting Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - Output / Channel	Voltage - Forward (Vf) (Typ)	Number of Channels	Data Rate	Output Type	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Voltage - Isolation	Supplier Device Package	Voltage - Supply	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Current - DC Forward (If) (Max) [Max]	Common Mode Transient Immunity (Min) [Min]	Input Type	Operating Temperature [Max]	Operating Temperature [Min]
Everlight Electronics Co Ltd ELM611(TA)	Surface Mount	40 ns	10 ns	50 mA	1.45 V	1	10 Mbps	Open Collector Schottky Clamped	0	1	3750 Vrms	5-SOP	7 V	100 ns	100 ns	50 mA	20 kV/µs	DC	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.43
	Digi-Reel®	1	$ 3.43
	Tape & Reel (TR)	9000	$ 1.44

General part information

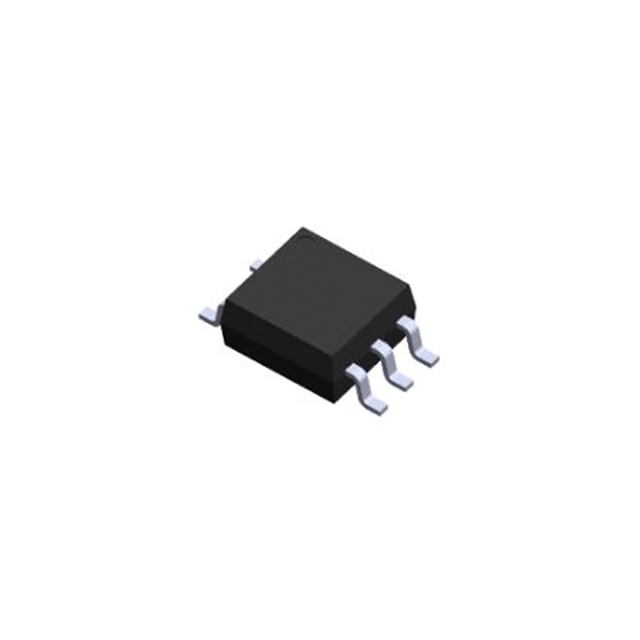

Logic Output Optoisolator 10Mbps Open Collector, Schottky Clamped 3750Vrms 1 Channel 20kV/µs CMTI 5-SOP
