16-823-90

Active

Aries Electronics

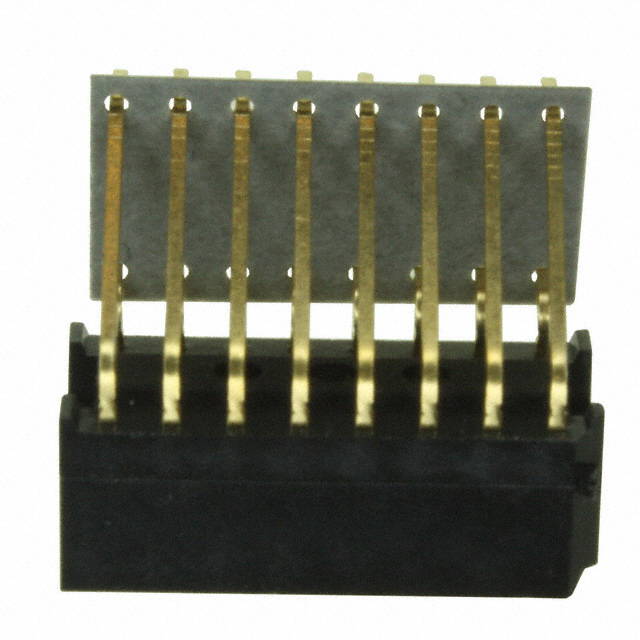

CONN IC DIP SOCKET 16POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

16-823-90

Active

Aries Electronics

CONN IC DIP SOCKET 16POS GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	16-823-90

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Current Rating (Amps)	1.5 A
Features	Closed Frame
Housing Material	Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid)	16
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	0.145 "
Termination Post Length	3.68 mm
Type	0.3 "
Type	7.62 mm
Type	DIP

16-823 Series

Part	Pitch - Mating	Pitch - Mating	Type	Type	Type	Termination	Contact Finish - Mating	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Number of Positions or Pins (Grid)	Contact Material - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Finish - Post	Housing Material	Pitch - Post	Pitch - Post	Contact Material - Post [custom]	Termination Post Length	Termination Post Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material - Post
Aries Electronics 16-823-90C	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Solder	Gold	3 A	200 µin	5.08 µm	Closed Frame	16	Beryllium Copper	105 ░C	-55 °C	UL94 V-0	Tin	Glass Filled Nylon 4/6 Polyamide (PA46)	2.54 mm	0.1 in	Brass	3.56 mm	0.14 in	30 Áin	0.76 Ám
Aries Electronics 16-823-90	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Solder	Gold	1.5 A	10 çin	0.25 çm	Closed Frame	16	Phosphor Bronze			UL94 V-0	Gold	Polyamide (PA46) Nylon 4/6	2.54 mm	0.1 in		3.68 mm	0.145 "	10 çin	0.25 çm	Phosphor Bronze
Aries Electronics 16-823-90TWR	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Solder		1.5 A	200 µin	5.08 µm	Closed Frame	16	Phosphor Bronze			UL94 V-0	Tin	Polyamide (PA46) Nylon 4/6	2.54 mm	0.1 in		3.68 mm	0.145 "	200 µin	5.08 µm	Phosphor Bronze
Aries Electronics 16-823-90WR	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Solder	Gold	1.5 A	10 çin	0.25 çm	Closed Frame	16	Phosphor Bronze			UL94 V-0	Gold	Polyamide (PA46) Nylon 4/6	2.54 mm	0.1 in		3.68 mm	0.145 "	10 çin	0.25 çm	Phosphor Bronze
Aries Electronics 16-823-90T	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Solder		1.5 A	200 µin	5.08 µm	Closed Frame	16	Phosphor Bronze			UL94 V-0	Tin	Polyamide (PA46) Nylon 4/6	2.54 mm	0.1 in		3.68 mm	0.145 "	200 µin	5.08 µm	Phosphor Bronze

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.71
		10	$ 9.64
		25	$ 9.08
		50	$ 8.85
		100	$ 8.61
		250	$ 7.68
		500	$ 7.22
		1000	$ 6.38

Description

General part information

16-823 Series

16 (2 x 8) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole, Right Angle, Horizontal
