AM20C-1215DZ

Active

aimtec

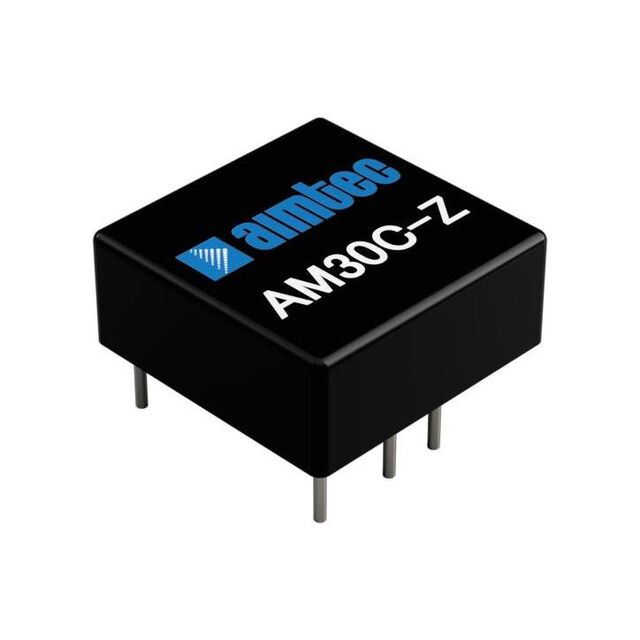

MODULE DC-DC 12VIN 2-OUT -15V/15V -0.667A/0.667A 20W 6-PIN DIP TUBE

Search across all available documentation for this part.

Active

aimtec

MODULE DC-DC 12VIN 2-OUT -15V/15V -0.667A/0.667A 20W 6-PIN DIP TUBE

Technical Specifications

Parameters and characteristics for this part

Specification	AM20C-1215DZ

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output (Max)	667 mA
Current - Output (Max)	667 mA
Efficiency	89 %
Features	Remote On/Off, Adjustable Output
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Power (Watts)	20 W
Size / Dimension [x]	1 in
Size / Dimension [x]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.39 in
Size / Dimension [z]	9.9 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.6 kV
Voltage - Output 1 [Max]	15 V
Voltage - Output 1 [Min]	-15 V
Voltage - Output 2	-15 V

Part	Current - Output (Max)	Current - Output (Max)	Type	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Efficiency	Voltage - Input (Max) [Max]	Features	Voltage - Isolation	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Output 2	Applications	Voltage - Input (Min) [Min]	Number of Outputs	Power (Watts)	Current - Output (Max) [Max]	Voltage - Output 1
aimtec AM20C-1215DZ	667 mA	667 mA	Isolated Module	CE cURus	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	-40 °C	75 ░C	Through Hole	89 %	18 V	Adjustable Output Remote On/Off	1.6 kV	15 V	-15 V	-15 V	ITE (Commercial)	9 V	2	20 W
aimtec AM20CWR-2412SZK			Isolated Module	CE	1.09 in	1.09 "	0.65 in	27.6 mm	27.6 mm	16.4 mm	-40 °C	100 °C	Through Hole	89 %	70 V	Heat Sink Remote On/Off	3000 V				ITE (Commercial)	13 V	1	20 W	1.67 A	12 V
aimtec AM20CWR-2403SZK			Isolated Module	CE	1.09 in	1.09 "	0.65 in	27.6 mm	27.6 mm	16.4 mm	-40 °C	100 °C	Through Hole	87 %	70 V	Heat Sink Remote On/Off	3000 V				ITE (Commercial)	13 V	1	20 W	4.5 A	3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output -15 ~ 15V -15V 667mA, 667mA 9V - 18V Input
