General part information

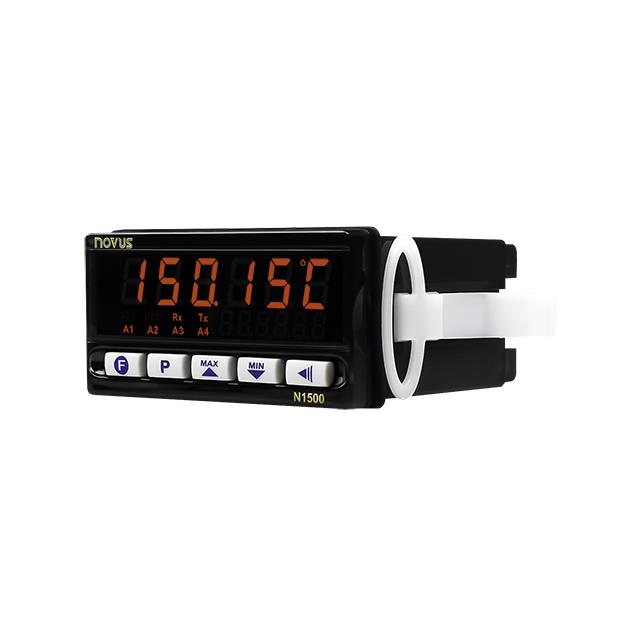

Process, Temperature Meter LED - Red Characters Display Panel Mount
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 8150000230 |
|---|---|
| Display Type | LED - Red Characters |
| Ingress Protection [custom] | IP65 |
| Ingress Protection [custom] | IP20 |
| Measuring Range [Max] | 20 mA, 10 V, 1800 °C |
| Measuring Range [Min] | -270 °C, 0 A, 0 V |
| Measuring Type | RTD, Thermocouple, Process |
| Number of Characters Per Row | 5.5 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | 5 °C |
| Output Type | Relay (4) |
| Panel Cutout Dimensions [x] | 93 mm |
| Panel Cutout Dimensions [y] | 45.5 mm |
| Termination Style | Screw Terminal |
| Type | Temperature Meter, Process |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
N1500 RS485 UNIVERSAL INDICATOR,
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Characters Per Row | Display Type | Type | Measuring Type | Termination Style | Measuring Range [Min] | Measuring Range [Max] | Output Type | Ingress Protection [custom] | Ingress Protection [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Novus Automation 8150000230 | 240 VAC | 100 VAC | 45.5 mm | 93 mm | 50 °C | 5 °C | 5.5 | LED - Red Characters | Process, Temperature Meter | Process, RTD, Thermocouple | Screw Terminal | -270 °C, 0 A, 0 V | 10 V, 20 mA, 1800 °C | Relay (4) | IP65 | IP20 |
