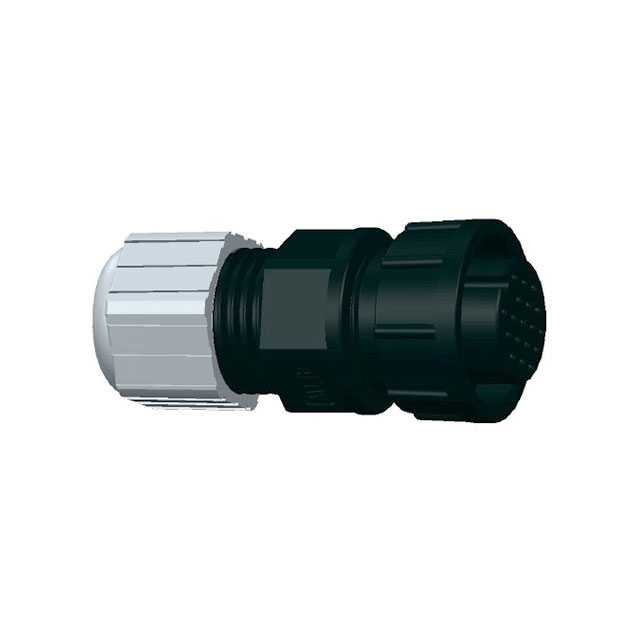

CU-18BFFA-LL7001

Active

Amphenol LTW

CIRCULAR CONNECTOR, RCPT, 18POS, CABLE

Search across all available documentation for this part.

Active

Amphenol LTW

CIRCULAR CONNECTOR, RCPT, 18POS, CABLE

Technical Specifications

Parameters and characteristics for this part

Specification	CU-18BFFA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	18
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded

Part	Insert Material	Backshell Material, Plating	Color	Ingress Protection	Mounting Type	Shell Material	Number of Positions	Primary Material	Contact Finish - Mating	Features	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Size - Insert	Current Rating (Amps)	Shielding	Fastening Type	Connector Type
Amphenol LTW CU-18BFFA-LL7001	Polyamide (PA) Nylon Glass Filled	Nylon Polyamide (PA)	Black	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	18	Plastic	Gold	Backshell Coupling Nut	Keyed	-40 °C	105 ░C	Copper Alloy	C	2 A	Unshielded	Bayonet Lock	Female Sockets Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Plug, Female Sockets Solder Cup
