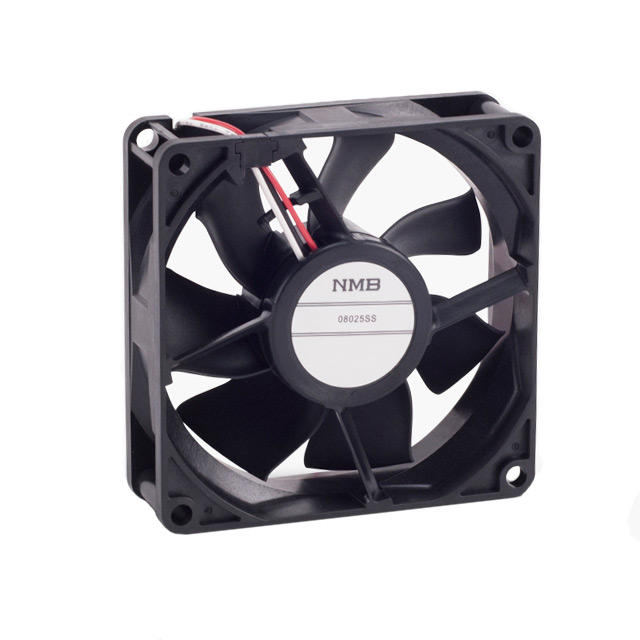

Specification	08025SS-24Q-AT-D0

Air Flow	54.7 CFM
Bearing Type	Sleeve
Current Rating	0.21 A
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach)
Lifetime	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	39.5 dB
Operating Temperature (Max)	140 °F
Operating Temperature (Min)	14 °F
Power (Watts)	5.04 W
RPM	4100 RPM
Size / Dimension Height	80 mm
Size / Dimension Length	80 mm
Size / Dimension Shape	Square
Static Pressure	0.27 in H2O
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Voltage Range (Max)	26.4 VDC
Voltage Range (Min)	10 VDC
Width	25 mm

08025SS Series

Part	Termination Leads Count	Termination Type	Termination	Width	Bearing Type	Operating Temperature (Max)	Operating Temperature (Min)	Fan Type	Voltage - Rated	Power (Watts)	RPM	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Static Pressure	Features	Noise	Air Flow	Material - Frame	Lifetime	Material - Blade	Voltage Range (Min)	Voltage Range (Max)	Current Rating
NMB TECHNOLOGIES 08025SS-24Q-AT-D0	3	Wire Leads	3 Wire Leads	25 mm	Sleeve	140 °F	14 °F	Tubeaxial	24 VAC	5.04 W	4100 RPM	80 mm	Square	80 mm	0.27 in H2O	Auto Restart Speed Sensor (Tach)	39.5 dB	54.7 CFM	Plastic	50000 Hrs	Plastic	10 VDC	26.4 VDC	0.21 A
NMB TECHNOLOGIES 08025SS-24Q-ET-D0	3	Wire Leads	3 Wire Leads	25 mm	Sleeve	140 °F	14 °F	Tubeaxial	24 VAC	5.04 W	4100 RPM	80 mm	Square	80 mm	0.273 in H2O	Auto Restart Speed Sensor (Tach)	39.5 dB	55.3 CFM
NMB TECHNOLOGIES 08025SS-24M-EA-D0	2 leads	Wire Leads	2 Wire Leads	25 mm	Sleeve	158 °F	14 °F	Tubeaxial	24 VAC	1.68 W	2700 RPM	80 mm	Square	80 mm	0.116 in H2O	Auto Restart	26 dB	36.3 CFM
NMB TECHNOLOGIES 08025SS-24Q-AL-D0	3	Wire Leads	3 Wire Leads	25 mm	Sleeve	140 °F	14 °F	Tubeaxial	24 VAC	5.04 W	4100 RPM	80 mm	Square	80 mm	0.273 in H2O	Auto Restart Locked Rotor Sensor	39.5 dB	55.3 CFM	Plastic	50000 Hrs	Plastic	10 VDC	26.4 VDC	0.21 A
NMB TECHNOLOGIES 08025SS-24M-EA-D0	2 leads	Wire Leads	2 Wire Leads	25 mm	Sleeve	158 °F	14 °F	Tubeaxial	24 VAC	1.68 W	2700 RPM	80 mm	Square	80 mm	0.116 in H2O	Auto Restart	26 dB	36.3 CFM	Plastic	50000 Hrs	Plastic	10 VDC	27.6 VDC	70 mA
NMB TECHNOLOGIES 08025SS-24Q-AL-D0	3	Wire Leads	3 Wire Leads	25 mm	Sleeve	140 °F	14 °F	Tubeaxial	24 VAC	5.04 W	4100 RPM	80 mm	Square	80 mm	0.273 in H2O	Auto Restart Locked Rotor Sensor	39.5 dB	55.3 CFM
NMB TECHNOLOGIES 08025SS-24Q-ET-D0	3	Wire Leads	3 Wire Leads	25 mm	Sleeve	140 °F	14 °F	Tubeaxial	24 VAC	5.04 W	4100 RPM	80 mm	Square	80 mm	0.273 in H2O	Auto Restart Speed Sensor (Tach)	39.5 dB	55.3 CFM	Plastic	50000 Hrs	Plastic	10 VDC	26.4 VDC	0.21 A
