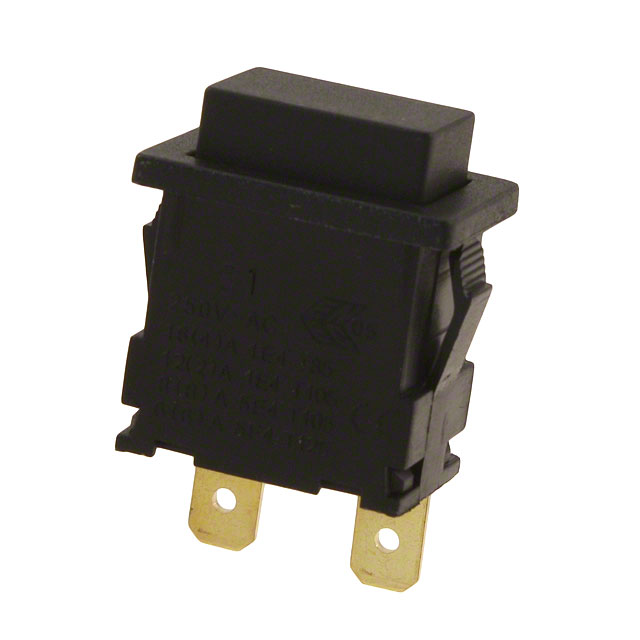

H8301ABBB-B
ActiveBULGIN LIMITED
SWITCH PUSH SPST-NO 13A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H8301ABBB-B
ActiveBULGIN LIMITED
SWITCH PUSH SPST-NO 13A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H8301ABBB-B |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Rectangular, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 13 A |
| Electrical Life | 10000 Cycles |
| Features | Antimicrobial |
| Ingress Protection | IP40 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 19.3 mm |
| Panel Cutout Dimensions [y] | 12.9 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Standard |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 8.11 | |
Description
General part information
H8301AB Series
Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In
