AX01F140VABBR300

Active

JAE Electronics

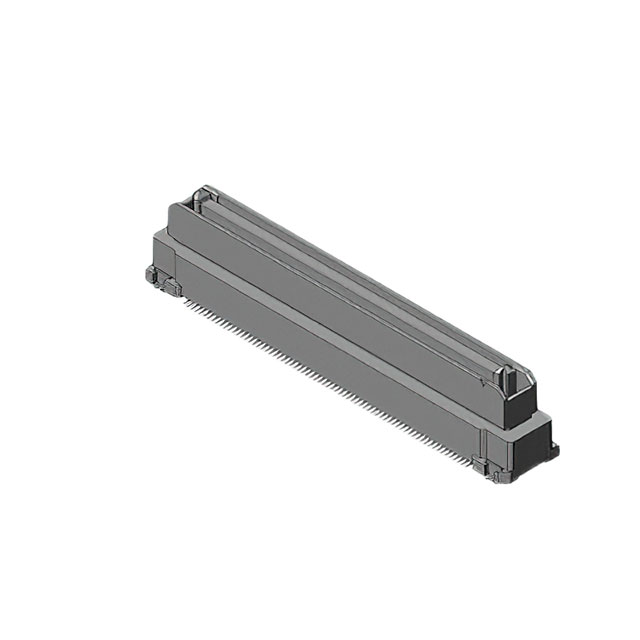

CONN FLOATING SIDE STR 140 POS

Search across all available documentation for this part.

Active

JAE Electronics

CONN FLOATING SIDE STR 140 POS

Technical Specifications

Parameters and characteristics for this part

Specification	AX01F140VABBR300

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Mated Stacking Heights	16 mm, 24 mm, 14 mm
Mounting Type	Surface Mount
Number of Positions	140
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

Part	Mated Stacking Heights	Features	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board
JAE Electronics AX01F140VABBR300	14 mm 16 mm 24 mm	Board Guide Solder Retention	Surface Mount	2	0.64 mm	0.025 in	140	Gold	Center Strip Contacts Receptacle	4 Áin	0.1 Ám
JAE Electronics AX01F140VACBR150	20 mm 22 mm 30 mm	Board Guide Solder Retention	Surface Mount	2	0.64 mm	0.025 in	140	Gold	Center Strip Contacts Receptacle	4 Áin	0.1 Ám	18.3 mm	0.72 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	300	$ 6.08

General part information

140 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
