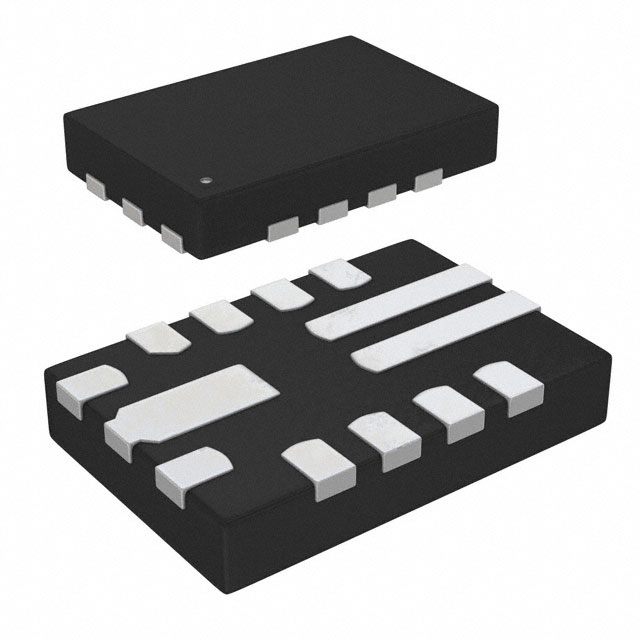

RT6236BLGQUF

Active

Richtek USA Inc.

IC REG BUCK ADJ 6A 13UQFN

Search across all available documentation for this part.

Active

Richtek USA Inc.

IC REG BUCK ADJ 6A 13UQFN

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Number of Outputs	Topology	Output Type	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Function	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed)	Frequency - Switching	Voltage - Input (Max) [Max]	Output Configuration	Voltage - Input (Min) [Min]	Mounting Type	Package / Case	Main Purpose	Supplied Contents	Regulator Topology	Outputs and Type	Outputs and Type	Utilized IC / Part	Board Type	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]
Richtek USA Inc. RT6236BLGQUF	13-UQFN (2x3)	1	Buck	Adjustable	6 A	85 °C	-40 °C	Step-Down	8 V	0.7 V	650 kHz	18 V	Positive	4.5 V	Surface Mount	13-UFQFN
Richtek USA Inc. EVB_RT6236AHGQUF					6 A						650 kHz						DC/DC Step Down	Board(s)	Buck	Non-Isolated	1	RT6236A	Fully Populated	1.2 V	18 V	4.5 V
Richtek USA Inc. RT6236AHGQUF	13-UQFN (2x3)	1	Buck	Adjustable	6 A	85 °C	-40 °C	Step-Down	8 V	0.7 V	650 kHz	18 V	Positive	4.5 V	Surface Mount	13-UFQFN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buck Switching Regulator IC Positive Adjustable 0.7V 1 Output 6A 13-UFQFN

Technical documentation and resources
