SGA18E24-P1J

Obsolete

MEAN WELL USA Inc.

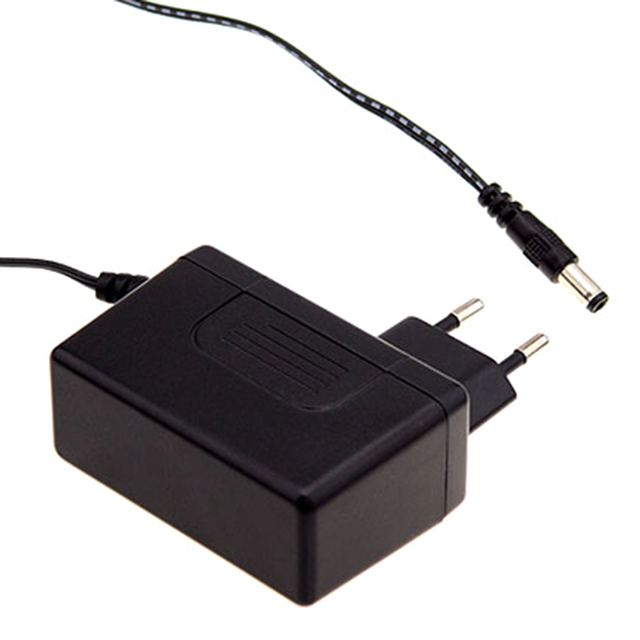

AC/DC WALL MOUNT ADAPTER 24V 18W

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

AC/DC WALL MOUNT ADAPTER 24V 18W

Technical Specifications

Parameters and characteristics for this part

Specification	SGA18E24-P1J

Applications	ITE (Commercial)
Approval Agency	CE, GS, CB
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	750 mA
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	18 W
Region Utilized	Europe
Size / Dimension [x]	2.97 in
Size / Dimension [x]	75.5 mm
Size / Dimension [y]	1.26 in
Size / Dimension [y]	32 mm
Size / Dimension [z]	47.5 mm
Size / Dimension [z]	1.87 "
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Cord Length	Cord Length	Operating Temperature [Min]	Operating Temperature [Max]	Form	Applications	Input Connector	Region Utilized	No Load Power Consumption [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Current - Output (Max) [Max]	Voltage - Output	Input Type	Efficiency	Polarization	Output Connector	Output Connector [diameter]	Output Connector [z]	Power (Watts)
MEAN WELL USA Inc. SGA18E24-P1J	47.5 mm	1.26 in	32 mm	2.97 in	1.87 "	75.5 mm	1.5 m	59 in	-20 C	60 °C	Wall Mount (Class II)	ITE (Commercial)	CEE 7/16	Europe	75 mW	90 VAC	264 VAC	CB CE GS	750 mA	24 V	Fixed Blade	Level VI	Positive Center	Barrel Plug	2.1 mm 5.5 mm	11 mm	18 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24V 18 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
