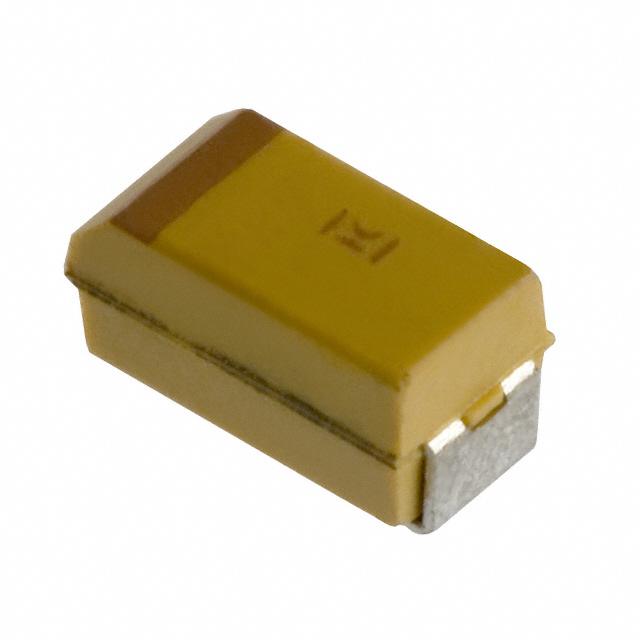

T491A474K050AT

Active

KEMET

.470UF 50.0V ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T491A474K050AT

T491A474K050AT

Active

KEMET

.470UF 50.0V ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet T491A474K050AT

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T491A474K050AT

Capacitance	0.47 µF
ESR (Equivalent Series Resistance)	9.5 Ohm
Features	General Purpose
Height - Seated (Max) [Max]	0.071 "
Height - Seated (Max) [Max]	1.8 mm
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Tolerance	10 %
Type	Molded
Voltage - Rated	50 VDC

T491A Series

...

Part	Manufacturer Size Code	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Features	Lifetime @ Temp.	Package / Case	Capacitance	ESR (Equivalent Series Resistance)
KEMET T491A225M016AH	A	20 %	-55 °C	125 °C	16 V	0.071 "	1.8 mm	Molded	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	General Purpose	2000 Hrs	1206 (3216 Metric)	2.2 µF	6 Ohms
KEMET T491A105K016AT7634	A	10 %	-55 °C	125 °C	16 V	0.071 "	1.8 mm	Molded	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	General Purpose	2000 Hrs	1206 (3216 Metric)	1 µF	10 Ohm
KEMET T491A155K020AH	A	10 %	-55 °C	125 °C	20 V	0.071 "	1.8 mm	Molded	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	General Purpose	2000 Hrs	1206 (3216 Metric)	1.5 µF	6.5 Ohm
KEMET T491A104K050AT4513	A	10 %	-55 °C	125 °C	50 VDC	0.071 "	1.8 mm	Molded	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	General Purpose	2000 Hrs	1206 (3216 Metric)	100000 pF	20 Ohms
KEMET T491A155K010AT	A	10 %	-55 °C	125 °C	10 V	0.071 "	1.8 mm	Molded	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	General Purpose	2000 Hrs	1206 (3216 Metric)	1.5 µF	8 Ohm
KEMET T491A225K025AT7280	A	10 %	-55 °C	125 °C	25 VDC	0.071 "	1.8 mm	Molded	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	General Purpose	2000 Hrs	1206 (3216 Metric)	2.2 µF	7 Ohm
KEMET T491A225M020AT7280	A	20 %	-55 °C	125 °C	20 V	0.071 "	1.8 mm	Molded	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	General Purpose	2000 Hrs	1206 (3216 Metric)	2.2 µF	6 Ohms
KEMET T491A104M035AG	A	20 %	-55 °C	125 °C	35 V	0.071 "	1.8 mm	Molded	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	General Purpose	2000 Hrs	1206 (3216 Metric)	100000 pF	20 Ohms
KEMET T491A106M006AT4021	A	20 %	-55 °C	125 °C	6.3 V	0.071 "	1.8 mm	Molded	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	General Purpose	2000 Hrs	1206 (3216 Metric)	10 µF	4 Ohm
KEMET T491A474K050AT	A	10 %	-55 °C	125 °C	50 VDC	0.071 "	1.8 mm	Molded	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	General Purpose	2000 Hrs	1206 (3216 Metric)	0.47 µF	9.5 Ohm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.58
		10	$ 0.36
		50	$ 0.27
		100	$ 0.24
		500	$ 0.20
		1000	$ 0.18
	Digi-Reel®	1	$ 0.58
		10	$ 0.36
		50	$ 0.27
		100	$ 0.24
		500	$ 0.20
		1000	$ 0.18
	Tape & Reel (TR)	2000	$ 0.17
		4000	$ 0.16
		6000	$ 0.16
		10000	$ 0.15
		14000	$ 0.15
		20000	$ 0.15
		50000	$ 0.14
Newark	Each (Supplied on Full Reel)	1	$ 0.18
		5000	$ 0.17
		10000	$ 0.16
		20000	$ 0.15
		30000	$ 0.14
		50000	$ 0.13

Description

General part information

T491A Series

0.47 µF Molded Tantalum Capacitors 50 V 1206 (3216 Metric) 9.5Ohm
