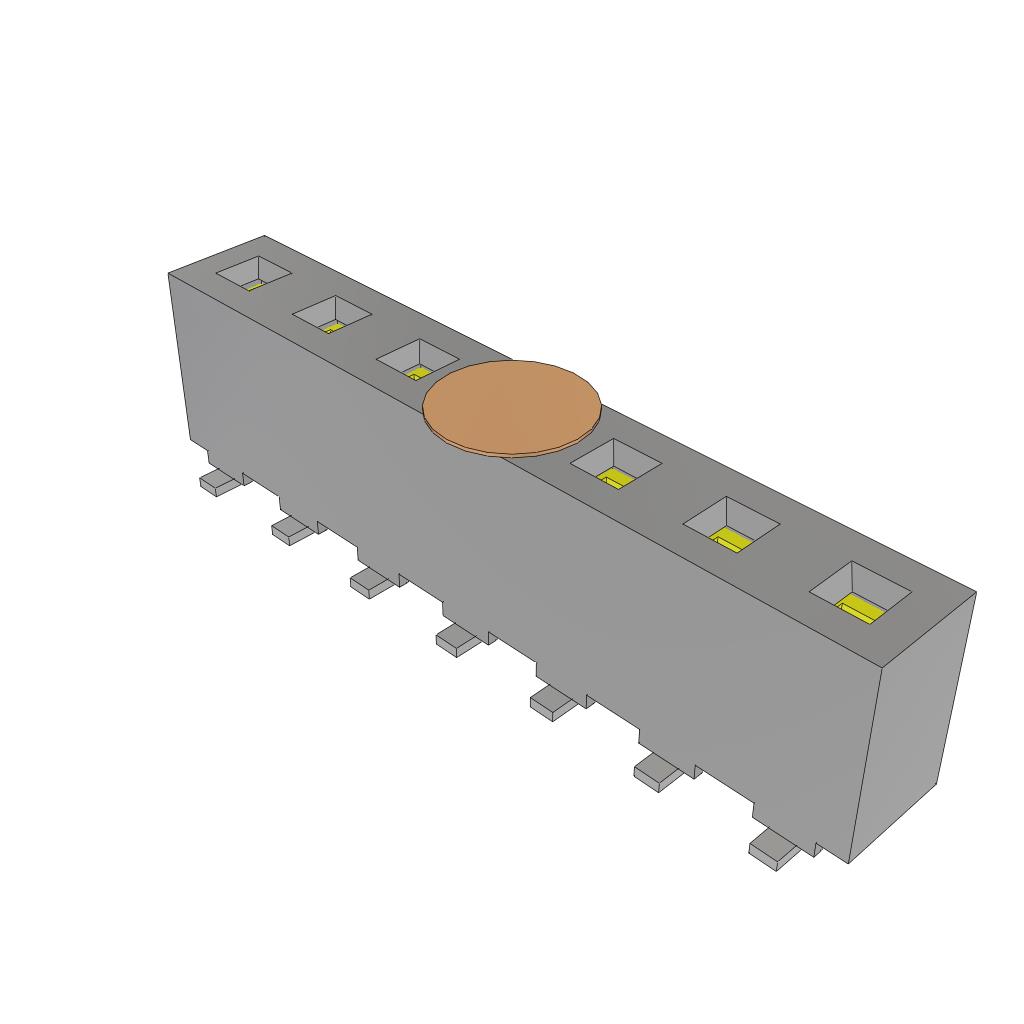

HPF-07-02-T-S-K-TR

Active

Samtec Inc.

.200 HI POWER SOCKET ASSEMBLY

Search across all available documentation for this part.

Active

Samtec Inc.

.200 HI POWER SOCKET ASSEMBLY

Technical Specifications

Parameters and characteristics for this part

Part	Fastening Type	Insulation Material	Number of Rows	Contact Length - Post	Contact Length - Post	Termination	Number of Positions	Contact Shape	Contact Material	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Color	Mounting Type	Insulation Height	Insulation Height	Contact Finish - Post	Number of Positions Loaded	Contact Type	Features
Samtec Inc. HPF-07-01-T-S	Push-Pull	Liquid Crystal Polymer (LCP)	1	0.102 in	2.6 mm	Solder	7	Square	Beryllium Copper	Receptacle	5.08 mm	0.2 in	Black	Through Hole	8.92 mm	0.351 in	Tin	All	Female Socket
Samtec Inc. HPF-07-02-T-S-K-TR	Push-Pull	Liquid Crystal Polymer (LCP)	1			Solder	7	Square	Beryllium Copper	Receptacle	5.08 mm	0.2 in	Black	Surface Mount	8.92 mm	0.351 in	Tin	All	Female Socket	Pick and Place
Samtec Inc. HPF-07-02-T-S-LC	Push-Pull	Liquid Crystal Polymer (LCP)	1			Solder	7	Square	Beryllium Copper	Receptacle	5.08 mm	0.2 in	Black	Surface Mount	8.92 mm	0.351 in	Tin	All	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	175	$ 4.22

General part information

7 Position Receptacle Connector 0.200" (5.08mm) Surface Mount Tin
