796332-1

Active

TE Connectivity AMP Connectors

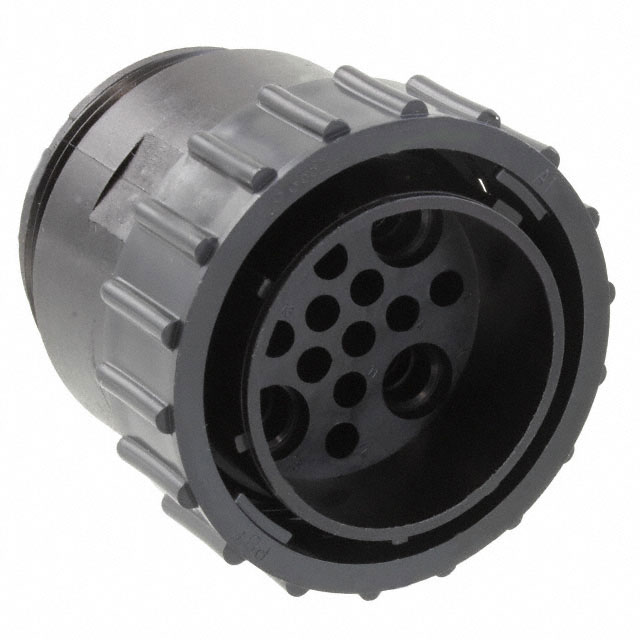

CONN PLG HSG MALE 16POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLG HSG MALE 16POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	796332-1

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16, 8
Contact Type	Crimp
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP67, IP65
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	4
Number of Positions [x]	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shielding	Unshielded
Type	For Male Pins

CONN PLG HSG MALE 16POS INLINE

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Connector Type	Contact Type	Material Flammability Rating	Mounting Type	Features	Ingress Protection	Insert Material	Number of Positions [x]	Number of Positions [custom]	Note	Orientation	Contact Size	Contact Shape	Shielding
TE Connectivity AMP Connectors 796332-1	For Male Pins	105 ░C	-55 °C	Black	Plug Housing	Crimp	UL94 V-0	Free Hanging (In-Line)	Coupling Nut	IP65, IP67	Thermoplastic	12	4	Contacts Not Included	Keyed	8, 16	Circular	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 (12 + 4 Power) Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
