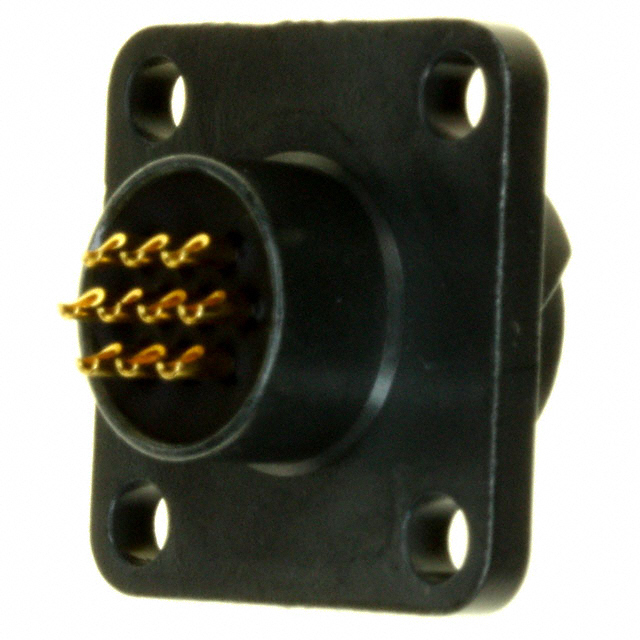

JN2AS10ML2-R

Active

JAE Electronics

CONN RCPT MALE 10POS SOLDER CUP

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT MALE 10POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JN2AS10ML2-R

Cable Opening [diameter]	12 mm
Cable Opening [diameter]	0.472 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.099 µm
Contact Finish Thickness - Mating	3.9 µin
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Fastening Type	Push-Twist
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Feature	Flange
Number of Positions	10
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Orientation	N
Primary Material	Metal
Shell Finish	Zinc
Shell Material	Zinc Alloy
Shell Size - Insert	S

Part	Shell Material	Orientation	Shell Finish	Contact Finish - Mating	Insert Material	Current Rating (Amps)	Color	Primary Material	Mounting Feature	Contact Material	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Positions	Cable Opening [diameter]	Cable Opening [diameter]	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert
JAE Electronics JN2AS10ML2-R	Zinc Alloy	N	Zinc	Gold	Synthetic Resin	3 A	Black	Metal	Flange	Copper Alloy	IP67 - Dust Tight Waterproof	0.099 µm	3.9 µin	Male Pins Receptacle	10	12 mm	0.472 in	Push-Twist	100 °C	-20 C	S
JAE Electronics JN2AS10ML1-R	Zinc Alloy	N	Zinc	Gold	Synthetic Resin	3 A	Black	Metal	Flange	Copper Alloy		0.099 µm	3.9 µin	Male Pins Receptacle	10	12 mm	0.472 in	Push-Twist	100 °C	-20 C	S

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Receptacle, Male Pins Solder Cup
