31-206

Active

Amphenol RF

CONN BNC JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	31-206

Body Finish	Silver
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Clamp, 1 Lockwasher, 1 Braid Clamp, 1 Contact, 1 Nut, 1 Gasket
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

Part	Insertion Loss	Housing Color	Body Finish	Fastening Type	Contact Termination	Body Material	Mating Cycles	Center Contact Material	Impedance	Number of Ports	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Shield Termination	Includes	Connector Style	Center Contact Plating	Cable Group	Dielectric Material	Voltage Rating	Mounting Feature
Amphenol RF 31-206	0.2 dB	Silver	Silver	Bayonet Lock	Solder	Brass	500	Beryllium Copper	50 Ohms	1	Female Socket Jack	-65 ░C	165 °C	4 GHz	Clamp	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Lockwasher 1 Nut	BNC	Silver	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Polytetrafluoroethylene (PTFE)	500 V	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

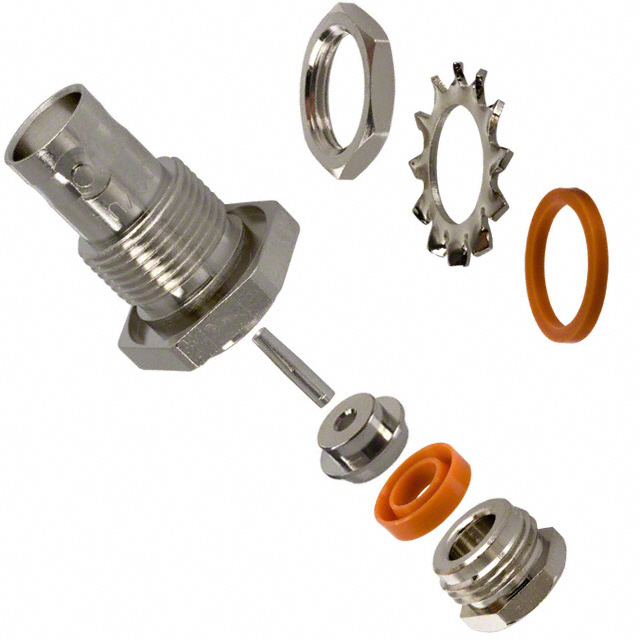

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder
