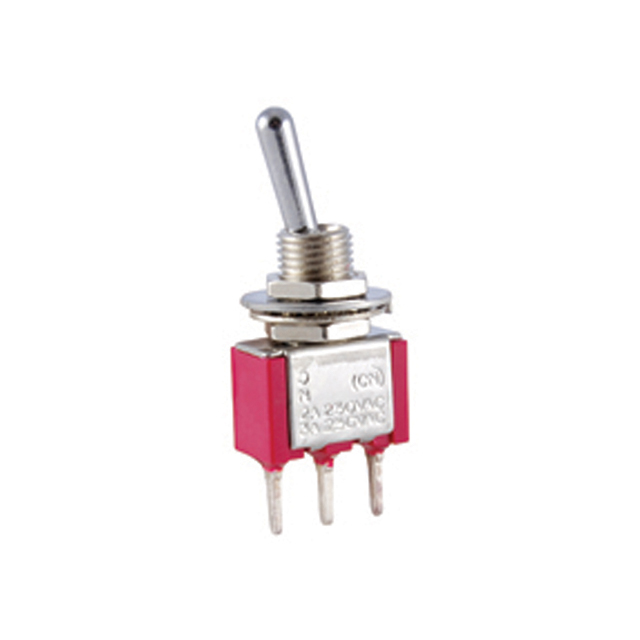

54-305PC
ActiveNTE Electronics, Inc
SW TOGGLE SPDT 5A
Deep-Dive with AI
Search across all available documentation for this part.
54-305PC
ActiveNTE Electronics, Inc
SW TOGGLE SPDT 5A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 54-305PC |
|---|---|
| Actuator Length [z] | 10.4 mm |
| Actuator Type | Standard Round |
| Circuit | SPDT |
| Current Rating (Amps) | 5 A |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | Mom-Off-Mom |
| Termination Style | PC Pin |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
54-305 Series
Toggle Switch SPDT Panel Mount
