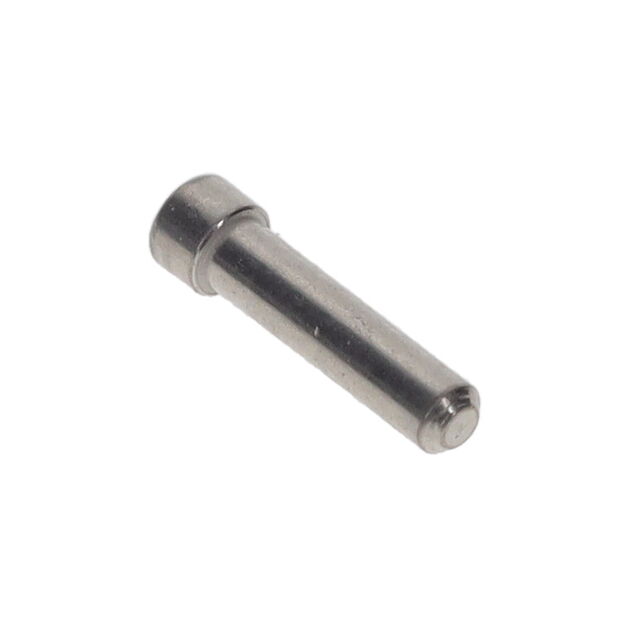

0677-0-15-80-30-84-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0677-0-15-80-30-84-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.025 " |
| Accepts Pin Diameter [Max] | 0.64 mm |
| Accepts Pin Diameter [Min] | 0.015 " |
| Accepts Pin Diameter [Min] | 0.38 mm |
| Contact Finish | Tin |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 1.6 mm |
| Flange Diameter [diameter] | 0.063 in |
| Length - Overall [x] | 0.248 in |
| Length - Overall [x] | 6.3 mm |
| Mounting Hole Diameter [diameter] | 0.051 in |
| Mounting Hole Diameter [diameter] | 1.3 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Socket Depth | 5.21 mm |
| Socket Depth | 0.205 in |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.18 | |
| 10 | $ 0.99 | |||
| 100 | $ 0.89 | |||
| 1000 | $ 0.65 | |||
| 5000 | $ 0.57 | |||
| 10000 | $ 0.54 | |||
Description
General part information
0677-0 Series
Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) No Tail Solder
