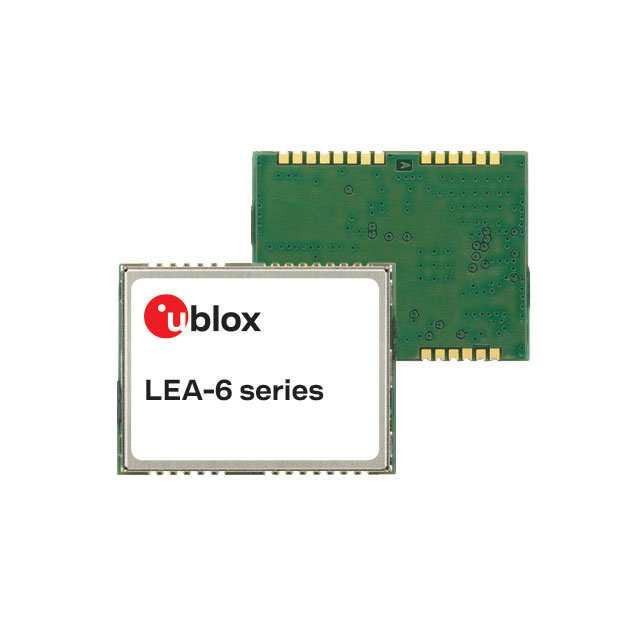

LEA-6N-0-000

Obsolete

u-blox

RF RECEIVER GLONASS/GPS 28SMD

Search across all available documentation for this part.

Obsolete

u-blox

RF RECEIVER GLONASS/GPS 28SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

- RF Receiver GLONASS, GPS -162dBm 9.6kBaud Castellation 28-SMD

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	LEA-6N-0-000	LEA-6 Series

Antenna Connector	Castellation	Not Included, Castellation
Applications	General Purpose	GPS Receiver, General Purpose
Current - Receiving	67 mA	67 mA
Data Interface	I2C, UART, USB	UART, SPI, I2C, USB
Data Rate (Max)	9.6 kBaud	9.6 kBaud
Modulation or Protocol	GLONASS, GPS	GPS, GLONASS, Galileo
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	28-SMD Module	28-SMD Module
Sensitivity	-162 dBm	-162 dBm
Supplier Device Package	28-SMD	28-SMD, 28-LCC (17x22.4)
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.65 V	1.65 - 2.7 V

MOD RF RECEIVER GPS TCXO FLASH

Part	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Data Interface	Package / Case	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Sensitivity	Modulation or Protocol	Antenna Connector	Current - Receiving	Data Rate (Max)
u-blox LEA-6H-0	28-SMD	2.7 V	3.6 V	I2C, SPI, UART, USB	28-SMD Module	GPS Receiver	85 °C	-40 °C	Surface Mount	-162 dBm	Galileo, GLONASS, GPS	Not Included
u-blox LEA-6A-0	28-SMD	2.7 V	3.6 V	I2C, SPI, UART, USB	28-SMD Module	GPS Receiver	85 °C	-40 °C	Surface Mount	-162 dBm	Galileo, GLONASS, GPS	Not Included
u-blox LEA-6R-0	28-SMD	2.7 V	3.6 V	I2C, SPI, UART, USB	28-SMD Module	GPS Receiver	85 °C	-40 °C	Surface Mount	-162 dBm	Galileo, GLONASS, GPS	Not Included
u-blox LEA-6N-0-000	28-SMD	1.65 V	3.6 V	I2C, UART, USB	28-SMD Module	General Purpose	85 °C	-40 °C	Surface Mount	-162 dBm	GLONASS, GPS	Castellation	67 mA	9.6 kBaud
u-blox LEA-6T-0	28-LCC (17x22.4)	2.7 V	3.6 V	I2C, UART, USB	28-SMD Module	General Purpose	85 °C	-40 °C	Surface Mount	-162 dBm	GPS
