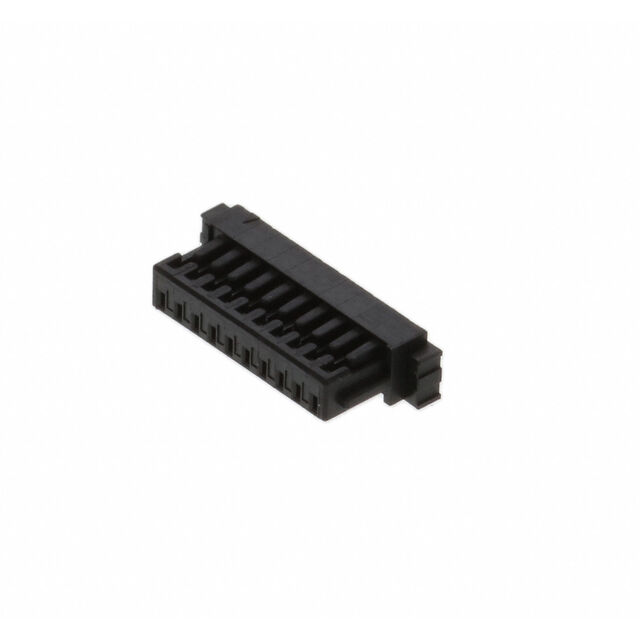

ISS1-10
ActiveSamtec Inc.
CONN HSG 10POS 1.00MM
Deep-Dive with AI
Search across all available documentation for this part.
ISS1-10
ActiveSamtec Inc.
CONN HSG 10POS 1.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ISS1-10 |
|---|---|
| Color | Black |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
ISS1 Series
| Part | Contact Type | Pitch [x] | Pitch [x] | Insulation Material | Number of Positions | Number of Rows | Color | Note | Mounting Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Female Socket | 0.039 in | 1 mm | Nylon Polyamide (PA) | 10 | 1 | Black | Contacts Not Included | Free Hanging (In-Line) | Crimp |
Samtec Inc. | Female Socket | 0.039 in | 1 mm | Nylon Polyamide (PA) | 15 | 1 | Black | Contacts Not Included | Free Hanging (In-Line) | Crimp |
Samtec Inc. | Female Socket | 0.039 in | 1 mm | Nylon Polyamide (PA) | 1 | Black | Contacts Not Included | Free Hanging (In-Line) | Crimp | |
Samtec Inc. | Female Socket | 0.039 in | 1 mm | Nylon Polyamide (PA) | 6 | 1 | Black | Contacts Not Included | Free Hanging (In-Line) | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.29 | |
| 10 | $ 0.98 | |||
| 100 | $ 0.75 | |||
| 500 | $ 0.63 | |||
| 1000 | $ 0.59 | |||
| 5000 | $ 0.50 | |||
| 10000 | $ 0.47 | |||
Description
General part information
ISS1 Series
10 Rectangular Connectors - Housings Black 0.039" (1.00mm)
