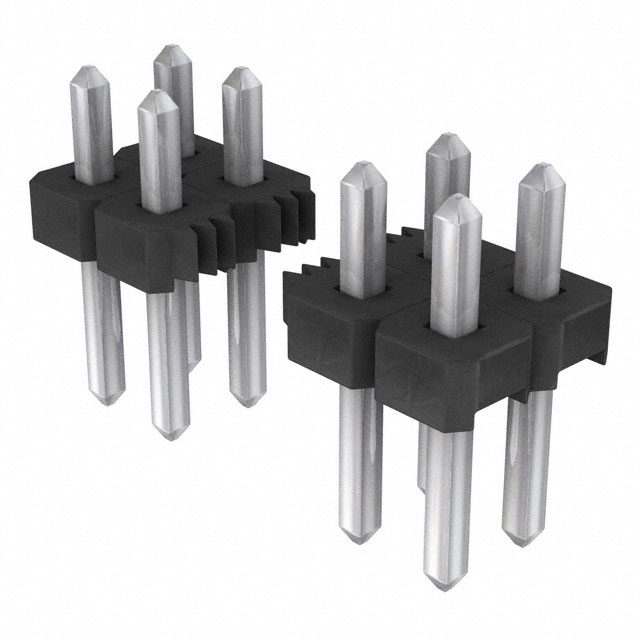

TLW-124-05-T-D

Active

Samtec Inc.

CONN HEADER VERT 48POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TLW Thru Hole Footprint

TLW-124-05-T-D

Active

Samtec Inc.

CONN HEADER VERT 48POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet TLW Thru Hole Footprint

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLW-124-05-T-D

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	4.32 mm
Contact Length - Post	0.17 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.06 in
Insulation Height [z]	1.52 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	48
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.51 mm
Overall Contact Length	0.335 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TLW-124 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Shrouding	Insulation Height [z]	Insulation Height [z]	Contact Material	Fastening Type	Contact Shape	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish - Post	Insulation Material	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Style	Contact Finish - Mating	Insulation Color	Termination	Contact Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. TLW-124-05-G-D	10 çin	0.25 çm	Flash	2	2.54 mm	0.1 in	48	Unshrouded	0.06 in	1.52 mm	Phosphor Bronze	Push-Pull	Square	0.1 in	2.54 mm	5.2 A	Gold	Liquid Crystal Polymer (LCP)	4.32 mm	0.17 in	All	Board to Board Cable	Gold	Black	Solder	Male Pin	Through Hole	-55 °C	125 °C	Header	8.51 mm	0.335 in
Samtec Inc. TLW-124-06-G-S	10 çin	0.25 çm	Flash	1			24	Unshrouded	0.06 in	1.52 mm	Phosphor Bronze	Push-Pull	Square	0.1 in	2.54 mm	5.2 A	Gold	Liquid Crystal Polymer (LCP)			All	Board to Board Cable	Gold	Black	Solder	Male Pin	Through Hole	-55 °C	125 °C	Header	7.62 mm	0.3 in	0.135 in	3.43 mm
Samtec Inc. TLW-124-06-F-S	3 µin	0.076 µm		1			24	Unshrouded	0.06 in	1.52 mm	Phosphor Bronze	Push-Pull	Square	0.1 in	2.54 mm	5.2 A	Tin	Liquid Crystal Polymer (LCP)			All	Board to Board Cable	Gold	Black	Solder	Male Pin	Through Hole	-55 °C	125 °C	Header	7.62 mm	0.3 in	0.135 in	3.43 mm
Samtec Inc. TLW-124-05-T-D				2	2.54 mm	0.1 in	48	Unshrouded	0.06 in	1.52 mm	Phosphor Bronze	Push-Pull	Square	0.1 in	2.54 mm	5.2 A	Tin	Liquid Crystal Polymer (LCP)	4.32 mm	0.17 in	All	Board to Board Cable		Black	Solder	Male Pin	Through Hole	-55 °C	105 ░C	Header	8.51 mm	0.335 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.01
		10	$ 5.43
		100	$ 4.75
		500	$ 4.00
		1000	$ 3.50

Description

General part information

TLW-124 Series

Connector Header Through Hole 48 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

TLW Thru Hole Footprint

Datasheet
