CJ70-47

Active

Cinch Connectivity Solutions Trompeter

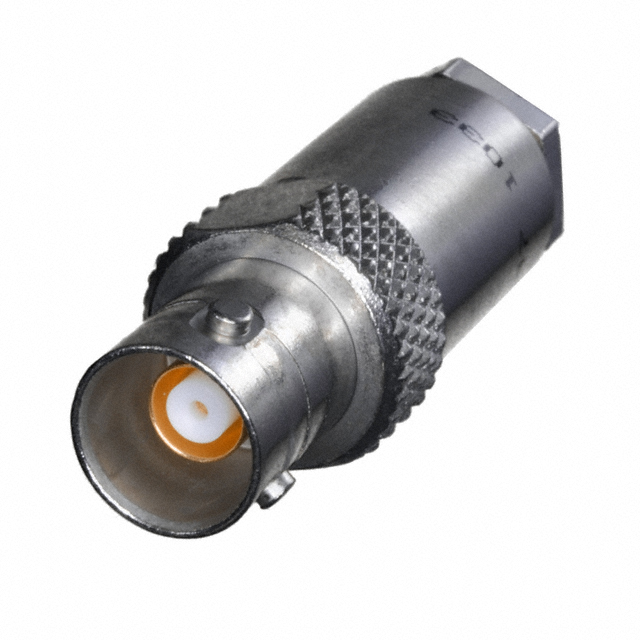

CONN TRB JACK STR SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.06
		10	$ 35.68
		25	$ 32.39
		50	$ 30.59

Description

General part information

CJ70 Series

TRB, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CJ70-47	CJ70 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	M17/176-00002	TWC-78-2, TWC-124-2, TWC-124-1A, TWC-78-1, M17/176-00002, TRC-75-1
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	Twinaxial/Triaxial, TRB	Twinaxial/Triaxial, TRB
Connector Type	Female Socket (Concentric), Jack	Female Socket (Concentric), Jack
Contact Termination	Solder	Solder, Crimp
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Three Lug	Three Lug
Frequency - Max [Max]	500 MHz	500 MHz
Housing Color	Silver	Silver
Impedance	Non-Constant	Non-Constant
Includes	-	1 Washer, 1 Heat Shrink, 1 Connector, 1 Nut, 1 Strain Relief
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Wrench Clamp	Wrench Clamp, Crimp
Voltage Rating	400 V	400 V

CJ70 Series

CONN TRB JACK STR SOLDER

Part	Connector Type	Housing Color	Contact Termination	Connector Style	Cable Group	Mating Cycles	Fastening Type	Center Contact Plating	Frequency - Max [Max]	Body Finish	Center Contact Material	Mounting Type	Number of Ports	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Body Material	Shield Termination	Features	Includes
Cinch Connectivity Solutions Trompeter CJ70-9	Female Socket (Concentric), Jack	Silver	Solder	TRB, Twinaxial/Triaxial	TWC-124-2, TWC-78-2	500	Bayonet Lock	Gold	500 MHz	Nickel	Beryllium Copper	Free Hanging (In-Line)	1	400 V	-65 ░C	165 °C	Non-Constant	Brass	Wrench Clamp
Cinch Connectivity Solutions Trompeter CJ70-29	Female Socket (Concentric), Jack	Silver	Solder	TRB, Twinaxial/Triaxial	TWC-124-1A, TWC-78-1	500	Bayonet Lock	Gold	500 MHz	Nickel	Beryllium Copper	Free Hanging (In-Line)	1	400 V	-65 ░C	165 °C	Non-Constant	Brass	Wrench Clamp	Three Lug
Cinch Connectivity Solutions Trompeter CJ70-47	Female Socket (Concentric), Jack	Silver	Solder	TRB, Twinaxial/Triaxial	M17/176-00002	500	Bayonet Lock	Gold	500 MHz	Nickel	Beryllium Copper	Free Hanging (In-Line)	1	400 V	-65 ░C	165 °C	Non-Constant	Brass	Wrench Clamp	Three Lug
Cinch Connectivity Solutions Trompeter CJ70-33	Female Socket (Concentric), Jack	Silver	Solder	TRB, Twinaxial/Triaxial	TRC-75-1	500	Bayonet Lock	Gold	500 MHz	Nickel	Beryllium Copper	Free Hanging (In-Line)	1	400 V	-65 ░C	165 °C	Non-Constant	Brass	Wrench Clamp	Three Lug
Cinch Connectivity Solutions Trompeter CJ70C-201	Female Socket (Concentric), Jack	Silver	Crimp	TRB, Twinaxial/Triaxial	M17/176-00002	500	Bayonet Lock	Gold	500 MHz	Nickel	Beryllium Copper	Free Hanging (In-Line)	1	400 V	-65 ░C	165 °C	Non-Constant	Brass	Crimp	Three Lug	1 Connector, 1 Heat Shrink, 1 Nut, 1 Strain Relief, 1 Washer
