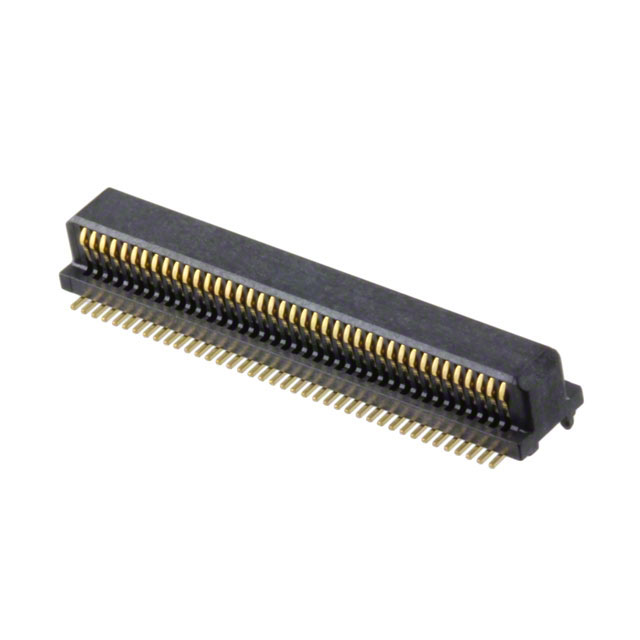

WR-80SB-VF-N1

Active

JAE Electronics

0.5MM 2 80P VERTICAL WELDING SMD,P=0.5MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Search across all available documentation for this part.

Active

JAE Electronics

0.5MM 2 80P VERTICAL WELDING SMD,P=0.5MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	WR-80SB-VF-N1

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Board Guide
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	4 mm, 6 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Connector Type	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Finish	Number of Rows	Mounting Type	Number of Positions
JAE Electronics WR-80SB-VFH30-N1-R1000	Center Strip Contacts Receptacle	0.5 mm	0.02 in	6.25 mm	0.246 in	7 mm 8 mm 9 mm	4 Áin	0.1 Ám	Board Guide	Gold	2	Surface Mount	80
JAE Electronics WR-80SB-VF-N1	Center Strip Contacts Receptacle	0.5 mm	0.02 in	3.25 mm	0.128 in	4 mm 5 mm 6 mm	4 Áin	0.1 Ám	Board Guide	Gold	2	Surface Mount	80
JAE Electronics WR-80SB-VF-N1-R1500	Center Strip Contacts Receptacle	0.5 mm	0.02 in	3.25 mm	0.128 in	4 mm 5 mm 6 mm	4 Áin	0.1 Ám	Board Guide	Gold	2	Surface Mount	80
JAE Electronics WR-80SB-VFH30-N1	Center Strip Contacts Receptacle	0.5 mm	0.02 in	6.25 mm	0.246 in	7 mm 8 mm 9 mm	4 Áin	0.1 Ám	Board Guide	Gold	2	Surface Mount	80

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

80 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
