PC123X5YFZ1B

Active

SHARP/Socle Technology

OPTOISOLATOR

Search across all available documentation for this part.

Active

SHARP/Socle Technology

OPTOISOLATOR

Technical Specifications

Parameters and characteristics for this part

Specification	PC123X5YFZ1B

Current - DC Forward (If) (Max)	50 mA
Current - Output / Channel	50 mA
Current Transfer Ratio (Max)	400 %
Current Transfer Ratio (Min) [Min]	50 %
Input Type	DC
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Output Type	1.81 mOhm
Package / Case	4-DIP
Rise / Fall Time (Typ) [custom]	3 µs
Rise / Fall Time (Typ) [custom]	4 µs
Supplier Device Package	4-DIP
Vce Saturation (Max)	200 mV
Voltage - Isolation	1140 Vpk

OPTOISOLATOR

Part	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Transfer Ratio (Max)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - DC Forward (If) (Max)	Voltage - Isolation	Input Type	Vce Saturation (Max)	Current - Output / Channel	Package / Case	Current Transfer Ratio (Min) [Min]	Supplier Device Package	Mounting Type	Number of Channels
SHARP/Socle Technology PC123X5YFZ1B	1.81 mOhm	100 °C	-30 ░C	400 %	3 µs	4 µs	50 mA	1140 Vpk	DC	200 mV	50 mA	4-DIP	50 %	4-DIP	Through Hole	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	5000	$ 0.22

General part information

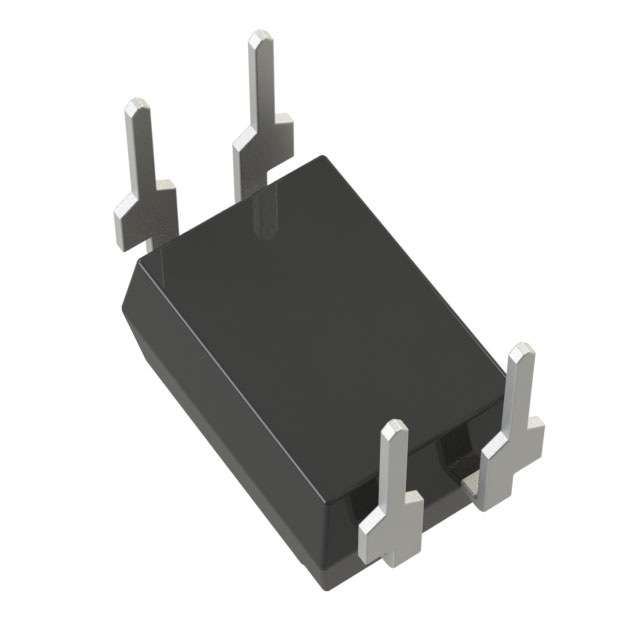

Optoisolator Transistor Output 1140Vpk 1 Channel 4-DIP
