SSL-LX5093USBD

Active

Lumex Opto/Components Inc.

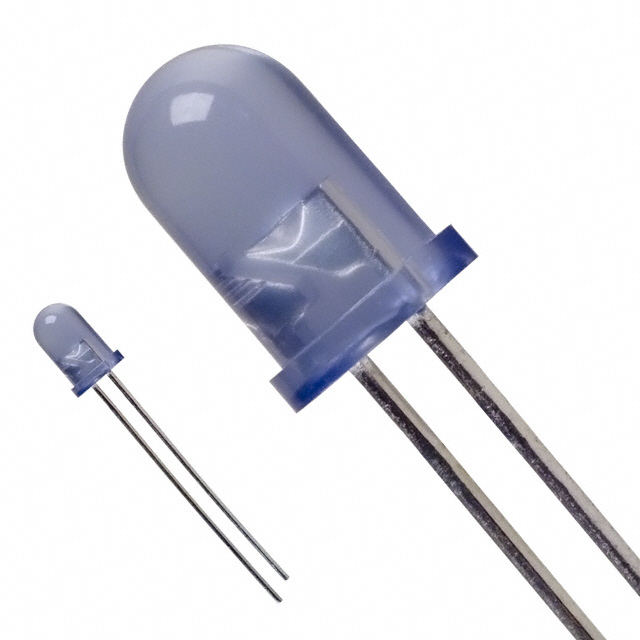

LED BLUE DIFFUSED T-1 3/4 T/H

Deep-Dive with AI

Search across all available documentation for this part.

SSL-LX5093USBD

Active

Lumex Opto/Components Inc.

LED BLUE DIFFUSED T-1 3/4 T/H

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.96
		10	$ 1.24
		100	$ 0.92
		500	$ 0.84
		1000	$ 0.69
		2000	$ 0.66
		5000	$ 0.64
		10000	$ 0.63

Description

General part information

SSL-LX5093 Series

Blue LED Indication - Discrete 3.5V Radial

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSL-LX5093USBD	SSL-LX5093 Series

	-	-
Color	Blue	Turquoise, Red, Blue, Yellow, Green, Pink, Amber, White, Purple
Configuration	Standard	Standard, Independent, Bidirectional
Current - Test	20 mA	6.5 - 20 mA
Height (Max)	-	9.73 mm
Height (Max) [Max] [z]	8.6 mm	8.6 - 16.23 mm
Lens Color	Blue	Colorless, Red, Yellow, Blue, White, Green, Orange, Amber
Lens Size	T-1 3/4	T-1 3/4
Lens Size	5 mm	5 mm
Lens Size	-	4.7 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Diffused	Clear, Diffused
Millicandela Rating	300 mcd	3 - 30000 mcd
Millicandela Rating	-	20 mcd
Millicandela Rating	-	30 mcd
Millicandela Rating	-	140mcd Red, 25mcd Green
Mounting Type	Through Hole	Through Hole
Package / Case	Radial	Radial
Size / Dimension	-	5 mm
Supplier Device Package	T-1 3/4	T-1 3/4, T-1 3/4 (5mm)
Viewing Angle	60 °	6 - 80 °
Voltage - Forward (Vf) (Typ)	3.5 V	1.7 - 12 V
Wavelength - Peak	-	430 - 700 nm

SSL-LX5093 Series

LED TURQUOISE CLEAR T-1 3/4 T/H

...

Part	Lens Color	Package / Case	Lens Size	Lens Size	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Mounting Type	Height (Max) [Max] [z]	Color	Current - Test	Configuration	Viewing Angle	Lens Style	Lens Transparency	Supplier Device Package	Height (Max) [Max]	Wavelength - Peak	Lens Size [diameter]	Size / Dimension [diameter]
Lumex Opto/Components Inc. SSL-LX5093TC	Colorless	Radial	T-1 3/4	5 mm	3.2 V	2200 mcd	Through Hole	8.6 mm	Turquoise	20 mA	Standard	20 °	Round with Domed Top	Clear	T-1 3/4
Lumex Opto/Components Inc. SSL-LX5093GGD
Lumex Opto/Components Inc. SSL-LX5093SRC39240	Colorless	Radial			2 V	3500 mcd	Through Hole		Red	20 mA	Independent	30 °	Round with Domed Top	Clear	T-1 3/4 (5mm)	9.73 mm	660 nm	4.7 mm
Lumex Opto/Components Inc. SSL-LX5093SRD/E	Red	Radial	T-1 3/4	5 mm	1.7 V	400 mcd	Through Hole	8.6 mm	Red	20 mA	Standard	60 °	Round with Domed Top	Diffused	T-1 3/4		660 nm
Lumex Opto/Components Inc. SSL-LX5093USBC/G	Colorless	Radial	T-1 3/4	5 mm	3.4 V	15000 mcd	Through Hole	9.6 mm	Blue	20 mA	Standard	15 °	Round with Domed Top	Clear	T-1 3/4 (5mm)		465 nm
Lumex Opto/Components Inc. SSL-LX5093LYD	Yellow	Radial	T-1 3/4	5 mm	2.1 V	30 mcd	Through Hole	8.6 mm	Yellow	20 mA	Standard	60 °	Round with Domed Top	Diffused	T-1 3/4		585 nm
Lumex Opto/Components Inc. SSL-LX5093USBD	Blue	Radial	T-1 3/4	5 mm	3.5 V	300 mcd	Through Hole	8.6 mm	Blue	20 mA	Standard	60 °	Round with Domed Top	Diffused	T-1 3/4
Lumex Opto/Components Inc. SSL-LX5093SRD/D	Red	Radial	T-1 3/4	5 mm	1.7 V	250 mcd	Through Hole	8.6 mm	Red	20 mA	Standard	60 °	Round with Domed Top	Diffused	T-1 3/4		660 nm
Lumex Opto/Components Inc. SSL-LX5093ID	Red	Radial	T-1 3/4	5 mm	2 V	40 mcd	Through Hole		Red	20 mA	Standard	60 °	Round with Domed Top	Diffused	T-1 3/4		635 nm
Lumex Opto/Components Inc. SSL-LX5093ID-125TR	Red	Radial	T-1 3/4	5 mm	2 V	40 mcd	Through Hole	8.6 mm	Red	20 mA	Independent	60 °	Round with Domed Top	Diffused	T-1 3/4		635 nm		5 mm
